  11. HVAC Motor, 1/30 HP, 1550 rpm, 115V, 3.3

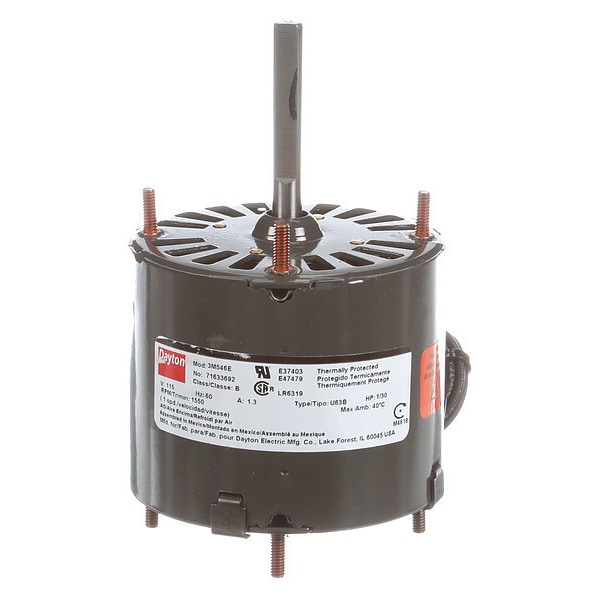

Dayton HVAC Motor, 1/30 HP, 1550 rpm, 115V, 3.3 71633692M - main

HVAC Motor, 1/30 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71633692M

  • Zoro # G2538322

product price: $71.29
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/30
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
71633692M
Zoro #
G2538322
UPC #
00190735291993
Country of Origin
Mexico

Dimensions

Length Less Shaft
3 1/2 in
Shaft Dia.
5/16 in
Cord Length
16 in
Body Dia.
3 5/16 in
Shaft Length
2 1/4 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/30
RPM Range
1,501-1,600
Motor Design
Shaded Pole
Standards
CSA Certified, UL Recognized
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CWSE
Ins. Class
B
Mounting Pattern
2 x 2
Full Load Amps
1.2 A
Stud/Base Mtg. Pattern
2 in x 2 in
Mounting Stud Location
4/Both Ends
Phase
Single
Number of Shafts
1
Motor Mounting Type
Ring/Stud
Duty
Continuous
Hz
60 Hz
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Item
HVAC Motor
Motor Shaft Design
Flat
No. of Speeds
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Frame
3.3
Motor Sub Application
Direct Drive Fan/Blower
Motor Bearings
Sleeve
Motor Application
HVAC/R
Motor Service Factor
1
Capacitor Required
No
Usable @ 200V
No
Usable @ 208V
No
Mounting Stud Pattern
2 in x 2 in
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Mounting
Stud
Type
OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.2 A Full Load Amps, 3.3 Frame, Output Watts 25 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
