Shop All 3.3 Inch Diameter Motors
Dayton

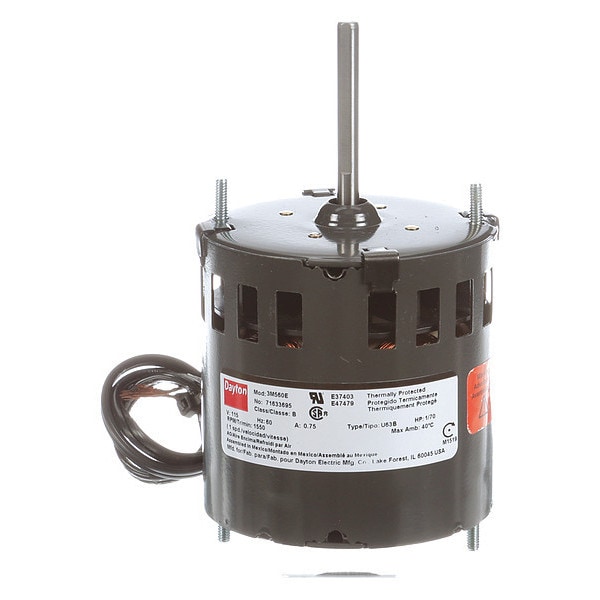

HVAC Motor, 1/70 HP, 1550 rpm, 115V, 3.3

product price: $60.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/70
See all product information

Product Information

Dimensions

Body Dia. 3 5/16 in
Length Less Shaft 3 7/8 in
Shaft Length 2 1/4 in
Cord Length 16 in
Shaft Dia. 1/4 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/70
RPM Range 1,501-1,600
Motor Service Factor 1
Motor Bearings Sleeve
Motor Shaft Design Flat
Motor Mounting Type Stud
No. of Speeds 1
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty Continuous
Standards CSA Certified, UL Recognized
Phase Single
Motor Application HVAC/R
Number of Shafts 1
Ins. Class B
Motor Design Shaded Pole
Mounting Stud Location 2/Both Ends
Motor Thermal Protection Auto
Hz 60 Hz
Frame 3.3
Max. Ambient Temp. 40 Degrees C
Stud/Base Mtg. Pattern 2-7/8 in
Full Load Amps 0.7 A
Motor Sub Application Direct Drive Fan/Blower
Item HVAC Motor
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Mounting Pattern 2-7/8
Motor Shaft Rotation CWSE
Capacitor Required No
Usable @ 208V No
Duty Cycle Continuous
Usable @ 200V No
Motor Mounting Position All Angle
Mounting Stud Pattern 2 7/8 in
Mounting Stud
Type OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/70 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.7 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
