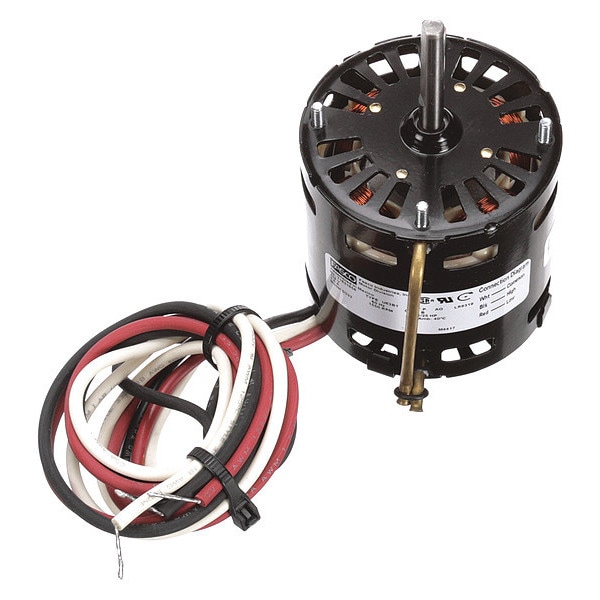

Fasco HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3 D332 - main

HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3

  • Mfr # D332

  • Zoro # G7469987

product price:  $207.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
2
HP
1/25
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D332
Zoro #
G7469987
UPC #
663001026631
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Length Less Shaft
3 3/4 in
Shaft Length
2 in
Shaft Dia.
5/16 in
Overall Length
5 9/16 in
Bolt Circle Dia.
2 7/8 in
Stud Size
#8-32
Lead Length
18 in
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
5/16 in
Body Diameter
3.3 in
Mounting Stud Thread Size
#8-32
Frame Size
3.3

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
2
HP
1/25
RPM Range
1,501-1,600
No. of Speeds
2
Motor Design
Shaded Pole
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Motor Shaft Design
Flat
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Phase
Single
Duty
Continuous
Frame
3.3
Motor Application
HVAC/R
Motor Shaft Rotation
CWSE
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Direct Drive Fan/Blower
Number of Shafts
1
Application
Fan/Blower
Mounting Pattern
2-7/8 x 2-7/8
Ins. Class
B
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Full Load Amps
1.5 A
Hz
60 Hz
Item
Fan and Blower Motor
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Location
4/Both Ends
Motor Mounting Type
Ring/Stud
Capacitor Required
Capacitor Not Required
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Weight
4 lb
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Mounting Holes
(8) #8-32
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Mounting
Stud
Shaft Design
Flat
Bearing Type
Sleeve
Product Type
Fan and Blower Motor
Frame Material
Steel
Full Load Current @ 60 Hz
1.5 A
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Sub Application
General Purpose
Wattage
30 W
Drive Type
Direct Drive
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 2, Voltage 115V AC, 1.5 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
