  11. Incandescent Photocontrol, 1,662 W, Translucent

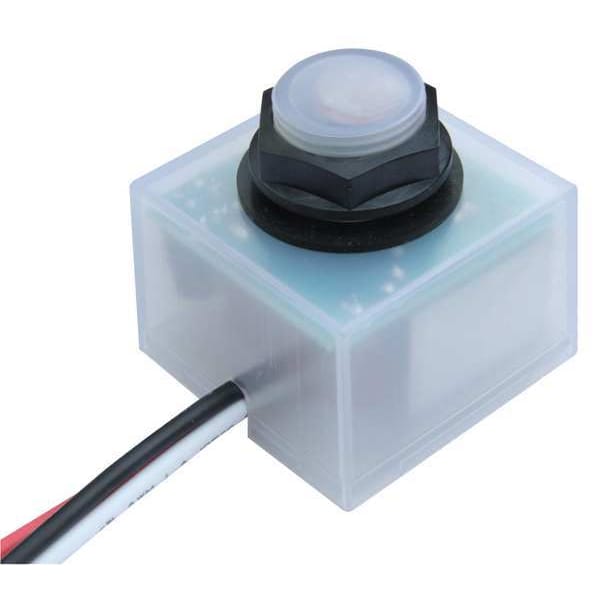

Dayton Incandescent Photocontrol, 1,662 W, Translucent 26WA98 - main

Incandescent Photocontrol, 1,662 W, Translucent

  • Mfr # 26WA98

  • Zoro # G8559537

product price: $15.99
/ea

Key Features

Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Temp. Range
-40 Degrees to 158 Degrees F
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Description/Special Features
Delay Action Elimates Loads Switching Off Due To Car Headlights, Lightning, 9 in Leads
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
26WA98
Zoro #
G8559537
UPC #
190735211007
Country of Origin
China

Dimensions

Length
1 3/4 in
Manufacturers Warranty Length
5 yr
Width
1 3/4 in
Depth
1 7/8 in
Overall Height
1.75 in

Details

Item
Photocontrol
Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Temp. Range
-40 Degrees to 158 Degrees F
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Description/Special Features
Delay Action Elimates Loads Switching Off Due To Car Headlights, Lightning, 9 in Leads
Enclosure Type
Raintight
Standards
UL Listed
Setting
Dusk to Dawn
Includes
Lock Nut, Washer Gasket
Housing Material
Polycarbonate
Contact Form
SPST
Mounting Style
Flush
Body Color
Translucent
Incandescent Current - Maximum
0.25
AC Operating Voltage
120-277V AC
Off Illumination - Minimum
30 fc
Ballast Current - Maximum
0.25
Off Illumination - Maximum
60 fc
Operating Temperature - Minimum
-40 Degrees F
On Illumination - Maximum
20 fc
Operating Temperature - Maximum
158 Degrees F
Compatible Lighting
Incandescent
Wattage - Maximum
1,662 W
Features
9 in Leads, Built-In Delay
On Illumination - Minimum
10 fc

Description

Photocontrol, Mounting Fixed, Voltage 120 to 277V AC, Max. Wattage 1,662, Max. Incandescent Amps 6 A, Max. Ballast Amps 6 A, 10.0 to 20.0 Foot Candles On, 30 to 60 Foot Candles Off, Color Translucent, Temp. Range -40 Degrees to 158 Degrees F, Length 1 3/4 in, Width 1 3/4 in, Depth 1 7/8 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards UL Listed, Includes Lock Nut, Washer Gasket
