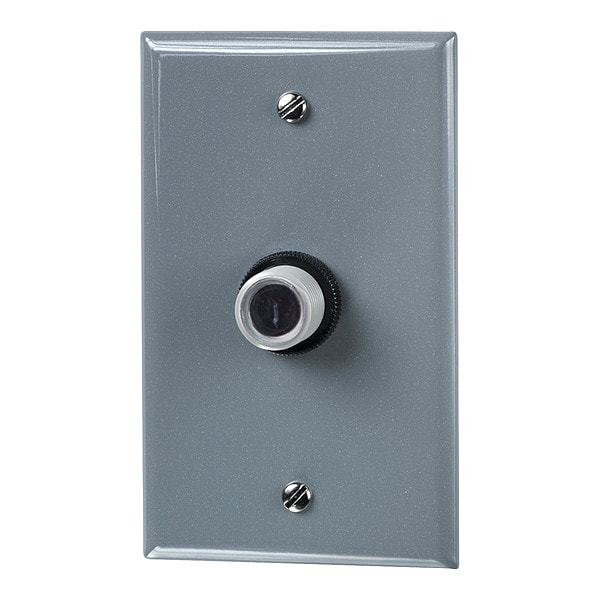

HID, Incandescent, LED Photocontrol, 1,000 W, Gray, 5 sec Max, 2 sec Min

  • Mfr # EK4336S

  • Zoro # G2124475

product price:
$
25.59
/ea
Sold in multiples of 12 for $307.08

Key Features

Compatible Lighting
HID, Incandescent, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
8.3 A
Wattage - Maximum
1,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EK4336S
Zoro #
G2124475
UPC #
078275148314
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
8 yr
Length
2 1/4 in
Depth
1 1/4 in
Width
1 5/16 in
Overall Height
2.25 in
Wire Size Max
#18 AWG
Wire Lead Length
9 in; 228.6 mm
Overall Width
1.31 in
Stem Diameter
3/8 in
Overall Depth
1.25 in
Stem Thread Size
3/8"-18

Details

Item
Photocontrol
Compatible Lighting
HID, Incandescent, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
8.3 A
Wattage - Maximum
1,000 W
Foot Candles On
1.5
Time Delay - Maximum
5 sec
Foot Candles Off
4.50
Time Delay - Minimum
2 sec
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
Includes
Neoprene Gasket, Wall Plate
Standards
ANSI C136.24, cULus, RoHS, California Title 20
Contact Form
SPST
Description/Special Features
Non-Drift Silicon Light Sensor with IR Filter, DC Relay with Zero-Crossing Circuitry for Extended Life
For Use With
HID, Incandescent, LED
Enclosure Type
Polycarbonate
Expected Lifetime Operations
10000
Photocontrol Switch Type
Relay
CSA Certification
CSA
Input Voltage Ranges
120-277 VAC, 50/60 Hz
Applications
Outdoor Lighting Control
Wiring Option
Wire leads
Photocontrol Sensor Location
Front
Fail Mode
ON
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Street Lighting; Pedestrian Pathway Lighting
Solutions
Lighting Control; Energy Savings; Landscape; Security; Comfort & Convenience; Panel Integrators
Activation Off
4.5 fc
Surge Protection Technology
255 J MOV, 5, 000 A Surge
Photocontrol Style
In-Wall
Market
Commercial; Residential; Industrial
Photocontrol Photocell Type
Silicon Diode
Tungsten Load Ratings
1000 W
Ballast Fluorescent
1800 VA
Activation On
1.5 fc
Expected Lifetime Years
15
UL Certification
UL
Photocontrol Type
Electronic
Features
Surge Protection, Conformal Coated PCB, Zero-Crossing Circuitry, 10,000 ON/OFF Cycles, Fail ON Mode, IR Filter, Non-Drift Silicon Light Sensor
Electronic Ballast
6 A, 120 VAC, 50 Hz, 6 A, 120 VAC, 60 Hz, 6 A, 208 VAC, 50 Hz, 6 A, 208 VAC, 60 Hz, 6 A, 240 VAC, 50 Hz, 6 A, 240 VAC, 60 Hz, 6 A, 277 VAC, 50 Hz, 6 A, 277 VAC, 60 Hz
Series
NIGHTFOX
Indoor/Outdoor Usage
Outdoor
Operating Temperature - Minimum
-40 Degrees F
Stem Thread Type
NPSM
Operating Temperature - Maximum
158 Degrees F
On Illumination - Maximum
1.5 fc
Mounting Style
In-Wall
Off Illumination - Maximum
4.5 fc

Description

Photocontrol, Mounting Wall, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 6 A, Max. Ballast Amps 6 A, 1.5 Foot Candles On, 4.50 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 1/4 in, Width 1 5/16 in, Depth 1 1/4 in, Enclosure Type Polycarbonate, Contact Form SPST, Housing Material Polycarbonate, Standards ANSI C136.24, cULus, RoHS, California Title 20, Includes Neoprene Gasket, Wall Plate
