  9. Light Duty Industrial Fan, Wall Mount, 18 in Blade Dia, 115V, 2,460/3,480 cfm, Non-Oscillating

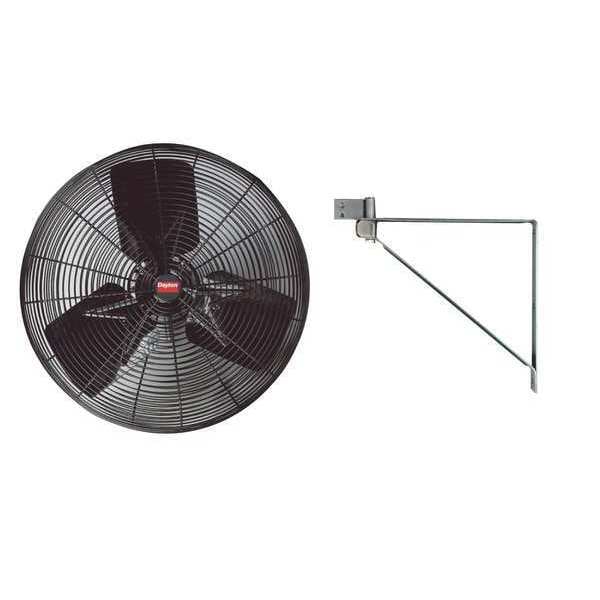

Dayton Light Duty Industrial Fan, Wall Mount, 18 in Blade Dia, 115V, 2,460/3,480 cfm, Non-Oscillating 6ALE7 - main

Light Duty Industrial Fan, Wall Mount, 18 in Blade Dia, 115V, 2,460/3,480 cfm, Non-Oscillating

  • Mfr # 6ALE7

  • Zoro # G3316607

product price: $170.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
18 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ALE7
Zoro #
G3316607
UPC #
190735360224
Country of Origin
China

Dimensions

Blade Diameter
18 in
Height
28 in
Max. Depth
23 in
Shaft Dia.
12mm
Width
21-5/8 in
Depth
23 in
Fan Cord Length
9 ft
Height Adjustment
Fixed Height

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/5
Air Flow
2,460/3,480 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
59 dBA
Item
Industrial Fan
Guard Material
Steel
Requires
Assembly
Fan Mounting Location
Wall
Bearing Type
Ball
CFM High
3480
Includes
Wall Bracket and Secondary Safety Support Cable
Fan Style
Light Duty
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling and People Cooling
Assembled
No
Fan Accessory Style
Standard
CFM Low
2460
Wire Guard Finish
Gloss Powder Coated
Mobile/Stationary
Stationary
Thermal Protection
Automatic Reset
Number of Blades
3
NEMA Plug Configuration
5-15p
Environmental Applications
Industrial
Motor Insulation
Class B
Hz
60
Watts
225/160 W
Air Velocity @ 40 Ft.
120/80 fpm
CFM/Watt
26.2/25.6
Number of Conductors
3
Motor RPM
1,120/1030 RPM
Motor Type
Permanent Split Capacitor
Housing Material
Steel
Air Velocity @ 10 Ft.
480/420 fpm
Air Velocity @ 20 Ft.
330/273 fpm
Air Velocity @ 60 Ft.
24/0 fpm
Motor Enclosure
Open Air Over
Standards
cULus Listed, OSHA compliant wire guards
Assembly Required
Yes
Amps
1.88/1.36
Fan Housing Material
Steel
Wheeled Base
Stationary
RPM
1100/950
Color
Black
Material
Steel
Motor hp
1/5 hp
NEMA plug Configuration
5-15p

Description

Light-Duty Industrial Fan, Blade Dia. 18 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 3480, CFM Low 2460, Air Velocity @ 20 Ft. 330/273 fpm, Motor HP 1/8 hp, Motor RPM 1120/1030, Operating Amps 1.88/1.36, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 1120/1030, Sound Level 59 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 225/160, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Height 28 in, Width 21 5/8 in
