  15. Limit Switch, Plunger, Roller, SPDT, 10A at 300V AC, Actuator Location: Top

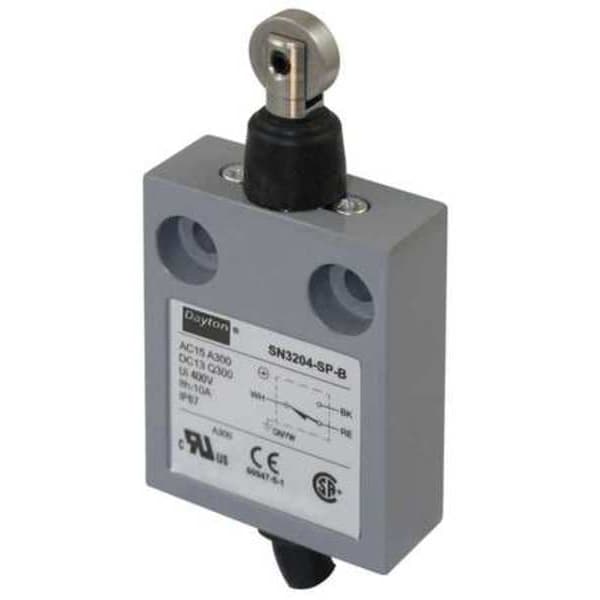

Dayton Limit Switch, Plunger, Roller, SPDT, 10A at 300V AC, Actuator Location: Top 12T935 - main

Limit Switch, Plunger, Roller, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 12T935

  • Zoro # G4045946

product price: $59.29
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12T935
Zoro #
G4045946
UPC #
190735116685
Country of Origin
China

Dimensions

Body Width - Limit Switch
1.57 in
Height
3.00"
Depth
0.63"
Body Depth - Limit Switch
0.63 in
Body Height - Limit Switch
1.97 in
Width
1.57"
Body Width
1.57 in
Body Depth
0.63 in
Mounting Hole Diameter
0.2 in
Body Height
1.97 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
IP Rating
67
Boot Sealed Actuator (Limit Switch)
Yes
Limit Switch Style
General Purpose Limit Switch
Operating Force
40 oz
NEMA Rating
12, 13, 4, 6, 6P
Electrical Connection
9.8 ft Cable, 4 Wire, 18 AWG, SJT
AC Contact Rating
10A at 300V
Number of Poles
1
Amps
10
DC Contact Rating
10A at 300V
Contact Form
SPDT
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Stem Thread - Limit Switch
No Stem
Wiring Entry
Prewired Cable
Contact Form - Limit Switch
SPDT
Mounting Hole - Limit Switch
(2) 0.20 in dia
Movement
Vertical
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Actuator Location (Limit Switch)
Top
Boot Sealed Actuator - Limit Switch
Yes
Series
Dayton
Mounting Hole Spacing - Limit Switch
0.98 in
Voltage Rating
300VAC/DC
Actuator Style
Roller Plunger, Boot Sealed
Body Style (Limit Switch)
Miniature
Operating Temp. Range
-14 Degrees to 185 Degrees F
Basic Actuator Style (Limit Switch)
Plunger
Actuator Location
Top
Actuator Style (Limit Switch)
Plunger, Roller
Standards
CE, CSA, UL
Mounting Hole Horizontal Center to Center Distance
25 mm
Action
A
Operating Temperature - Minimum
-14 Degrees F
Operating Force - Maximum
40 ozf
Number of Mounting Holes
2
Mounting Style
Surface
Boot Sealed Actuator
Boot Included
Directional Movement
Linear
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
12, 13, 4, 6, 6P

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 4, 6, 6P, Mounting - Limit Switch Surface
