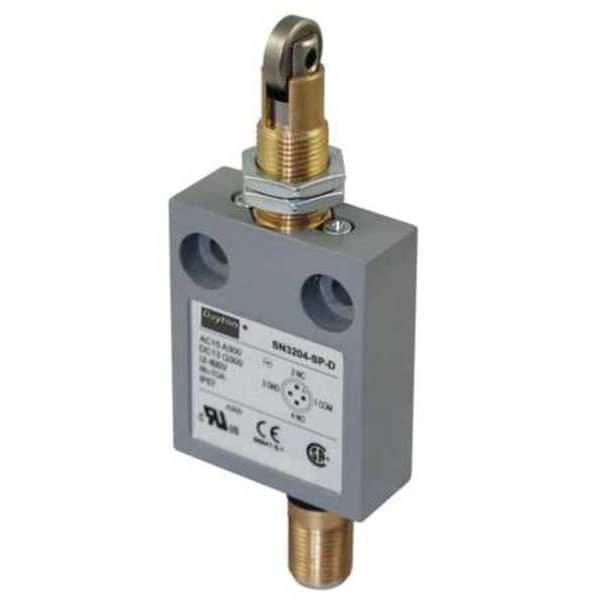

Limit Switch, Cross Roller, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 12T953
  • Zoro # G4083037
product price:
$
68.59
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Cross Roller, Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12T953
Zoro #
G4083037
UPC #
190735116869
Country of Origin
China

Dimensions

Body Depth - Limit Switch
0.63 in
Depth
0.63"
Width
1.57 in
Body Width - Limit Switch
1.57 in
Body Height - Limit Switch
1.97 in
Height
4.14"
Body Width
1.57 in
Body Height
1.97 in
Body Depth
0.63 in
Mounting Hole Diameter
5 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Cross Roller, Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Stem, Surface
Mounting Hole - Limit Switch
(2) 0.20 in dia
Series
Dayton
Stem Thread - Limit Switch
M14 x 1.00 in
Movement
Vertical
Amps
10
Number of Poles
1
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Wiring Entry
Connector
Actuator Location (Limit Switch)
Top
DC Contact Rating
10 A @ 300 V
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Boot Sealed Actuator - Limit Switch
No
Operating Temp. Range
-14 Degrees to 185 Degrees F
IP Rating
IP67
Actuator Style
Cross Roller-Plunger
Contact Form - Limit Switch
SPDT
Operating Force
40 oz
Voltage Rating
300V AC, 300V DC
Boot Sealed Actuator (Limit Switch)
No
Limit Switch Style
General Purpose Limit Switch
Actuator Location
Top
Mounting Hole Spacing - Limit Switch
0.98 in
Basic Actuator Style (Limit Switch)
Plunger
Actuator Style (Limit Switch)
Plunger, Cross Roller
Electrical Connection
4-Pin M12 Male Connector
NEMA Rating
12, 13, 4, 6, 6P
Body Style (Limit Switch)
Miniature
AC Contact Rating
10 A @ 300 V
Standards
CE, CSA, UL Listed
Contact Form
SPDT
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear
Mounting Style
Panel
Operating Force - Maximum
40 ozf
Mounting Hole Horizontal Center to Center Distance
25 mm
Action
A
Operating Temperature - Minimum
-14 Degrees F
NEMA Enclosure Rating
12, 13, 4, 6, 6P
Number of Mounting Holes
2
Operating Temperature - Maximum
185 Degrees F
Operating Force - Minimum
11.121 N
Switch Structure
SPDT

Description

Limit Switch, Actuator Style - Limit Switch Cross Roller, Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 4, 6, 6P, Mounting - Limit Switch Stem, Surface
