Shop DAYTON

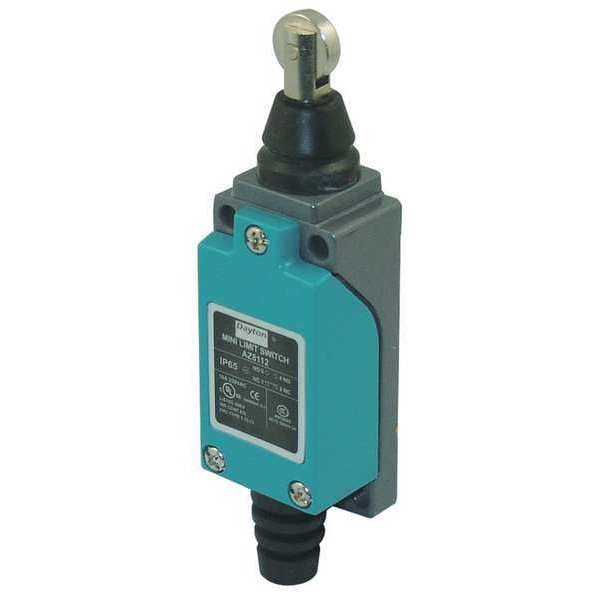

Limit Switch, Plunger, Roller, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 12T958
  • Zoro # G4079966
product price:
$
22.59
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12T958
Zoro #
G4079966
UPC #
190735116913
Country of Origin
China

Dimensions

Body Depth - Limit Switch
1.01 in
Height
4.42"
Roller Dia.
12.7 mm
Body Height - Limit Switch
2.41 in
Actuator Length
1.51"
Width
1.12"
Roller Width
0.15 in
Body Width - Limit Switch
1.12 in
Actuator Length - Limit Switch
1.51 in
Depth
1.01"
Body Height
2.41 in
Roller Diameter
0.5 in
Body Width
1.12 in
Mounting Hole Diameter
0.2 in
Body Depth
1.01 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Boot Sealed Actuator (Limit Switch)
No
Actuator Location
Top
Voltage Rating
300VAC/DC
Electrical Connection
Screw Terminals
Number of Poles
1
Amps
10
Actuator Style (Limit Switch)
Plunger, Roller
DC Contact Rating
10 A @ 300 V
Actuator Location (Limit Switch)
Top
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Limit Switch Style
General Purpose Limit Switch
Body Style (Limit Switch)
Miniature
Mounting Hole Spacing - Limit Switch
2.21 in x 0.83 in
Stem Thread - Limit Switch
No Stem
Basic Actuator Style (Limit Switch)
Plunger
Mounting Hole - Limit Switch
(4) 0.20 in dia
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Standards
CE, CSA, UL Listed
IP Rating
IP65
AC Contact Rating
10 A @ 300 V
Boot Sealed Actuator - Limit Switch
No
Operating Force
9 N-m
Operating Temp. Range
-14 Degrees to 158 Degrees F
Movement
Vertical
Contact Form
SPDT
NEMA Rating
1
Actuator Style
Roller Plunger
Contact Form - Limit Switch
SPDT
Series
Dayton
Directional Movement
Linear
Operating Temperature - Minimum
-14 Degrees F
Mounting Style
Surface
Number of Mounting Holes
4
Mounting Hole Vertical Center to Center Distance
56 mm
NEMA Enclosure Rating
1
Operating Torque - Maximum
79.66 in-lb
Boot Sealed Actuator
No Boot Included
Mounting Hole Horizontal Center to Center Distance
21 mm
Operating Temperature - Maximum
158 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 1.51 in, Body Height - Limit Switch 2.41 in, Body Width - Limit Switch 1.12 in, Body Depth - Limit Switch 1.01 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, Mounting - Limit Switch Surface
