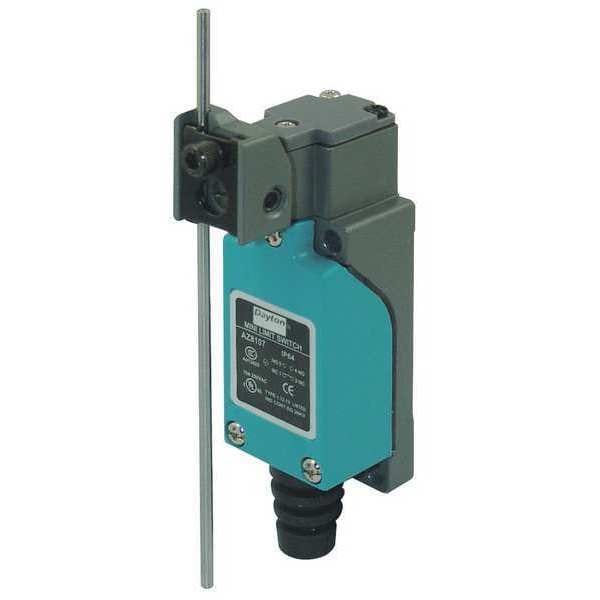

Dayton Limit Switch, Adjustable Rod, Rotary, SPDT, 10A at 300V AC, Actuator Location: Side 12T960 - main
Shop DAYTON

Limit Switch, Adjustable Rod, Rotary, SPDT, 10A at 300V AC, Actuator Location: Side

  • Mfr # 12T960

  • Zoro # G4157991

product price:  $30.49
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12T960
Zoro #
G4157991
UPC #
190735116937
Country of Origin
China

Dimensions

Body Depth - Limit Switch
1.01 in
Body Height - Limit Switch
2.41 in
Height
4.57"
Width
1.12"
Depth
1.81"
Body Width - Limit Switch
1.12 in
Body Depth
1.01 in
Mounting Hole Diameter
0.2 in
Body Height
2.41 in
Body Width
1.12 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Rod, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Body Style (Limit Switch)
Miniature
Operating Temp. Range
-14 Degrees to 158 Degrees F
Mounting Hole - Limit Switch
(4) 0.20 in dia
AC Contact Rating
10 A @ 300 V
Movement
Vertical
Contact Form - Limit Switch
SPDT
Actuator Location
Side
Standards
CE, CSA, UL Listed
Actuator Style (Limit Switch)
Rotary, Adjustable Rod
Series
Dayton
Limit Switch Style
General Purpose Limit Switch
Operating Force
25.5 in-oz
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Basic Actuator Style (Limit Switch)
Rotary
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
DC Contact Rating
10 A @ 300 V
Boot Sealed Actuator - Limit Switch
No
Number of Poles
1
NEMA Rating
1
Stem Thread - Limit Switch
No Stem
Amps
10
Contact Form
SPDT
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole Spacing - Limit Switch
2.21 in x 0.83 in
Actuator Style
Rod
Electrical Connection
Screw Terminals
IP Rating
IP65
Actuator Location (Limit Switch)
Side
Voltage Rating
300VAC/DC
Directional Movement
Linear
Mounting Hole Vertical Center to Center Distance
56 mm
Mounting Hole Horizontal Center to Center Distance
21 mm
Operating Torque - Maximum
1.59 in-lb
NEMA Enclosure Rating
1
Operating Temperature - Minimum
-14 Degrees F
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holes
4
Boot Sealed Actuator
No Boot Included
Mounting Style
Surface

Description

Limit Switch, Actuator Style - Limit Switch Adjustable Rod, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 2.41 in, Body Width - Limit Switch 1.12 in, Body Depth - Limit Switch 1.01 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, Mounting - Limit Switch Surface, Electrical Connection Screw Terminals
