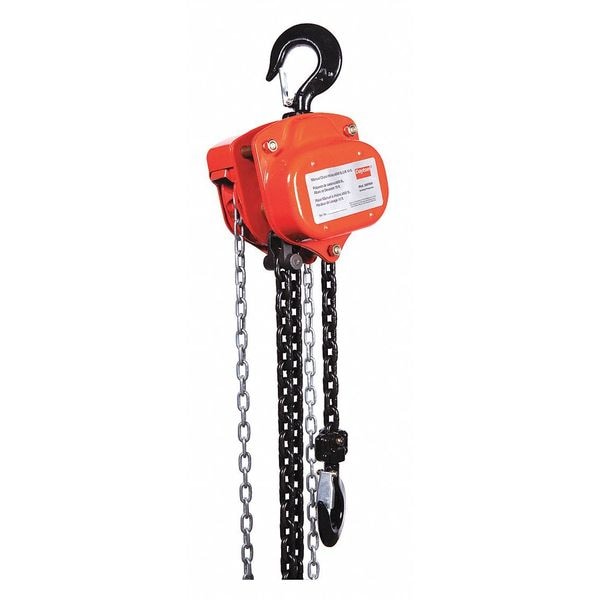

Dayton Manual Chain Hoist, 4000 lb., Lift 10 ft. 29XP30 - main

Manual Chain Hoist, 4000 lb., Lift 10 ft.

  • Mfr # 29XP30

  • Zoro # G9786971

product price: $432.99
/ea
Free Shipping & Returns

Key Features

Load Capacity
4,000 lb
Hoist Mount
Hook Mounted - No Trolley
Hoist Overload Protection
Yes
Pull to Lift Rated Load
75 lb
Min. Between Hooks
15 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
29XP30
Zoro #
G9786971
UPC #
190735215920
Country of Origin
China

Dimensions

Housing Length
7 63/64 in
Housing Width
8 in
Housing Depth
7 in
Manufacturers Warranty Length
1 yr
Body Depth
7 1/16 in
Maximum Lifting Length
10 ft
Mfr. Warranty Length
1 yr
Chain Length
11 ft
Minimum Retracted Length
15 3/4 in
Body Width
8 in
Lifting Hook Opening Width
1 1/4 in

Details

Load Capacity
4,000 lb
Hoist Lift
10 ft
Hoist Mount
Hook Mounted - No Trolley
Hoist Overload Protection
Yes
Pull to Lift Rated Load
75 lb
Min. Between Hooks
15 3/4 in
Hook Opening
1 17/64 in
Item
Manual Chain Hoist
Standards
ANSI/ASME B30.16
Includes
Safety Latch Hooks
Trolley Configuration
Hook Mounted - No Trolley
Brake
Weston Style, Double Disc Brake
Features
Never Needs Resetting or Recalibrating, Over Load Limiter when Activated, Factory-Set Overload Protection will not let Hoist Operate, but will Allow Operators to Lower Loads (If Lifting) or Release Load (If Pulling), Overload Protection Resets Itself, Slip Clutch the Standard Slip Clutch Device helps Prevent the Hoist from being used to Lift Damaging Loads Beyond Rated Capacity
Color
Red
Includes Brake
Brake Included
Power Source
Manual
Chain Grade
Grade 100
Included Components
Safety Latch Hooks
Body Finish
Powder Coated
Headroom
15 3/4 in
Chain Material
Alloy Steel
Body Material
Steel
Mount Type
Hook Mounted - No Trolley
Lifting Hook Material
Alloy Steel
Number of Load Chains
1
Includes Clutch
Clutch Included
Maximum Lifting Capacity
4,000 lb
For Outdoor Use
Yes
Number of Reeves
1
Lifting Hook Type
Hook with Safety Latch
Brake Type
Double Disc Brake, Weston Style
Chain Finish
Black Tempered, Zinc Plated
Operating Position
Vertical
Overload Protection Included
Yes

Description

Manual Chain Hoist, Chain Length 11 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 15 3/4 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 4,000 lb, Maximum Lifting Length 10 ft, Mount Type Hook Mounted - No Trolley, Body Depth 7 1/16 in, Body Material Steel, Body Width 8 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 100, Chain Material Alloy Steel, Color Red
