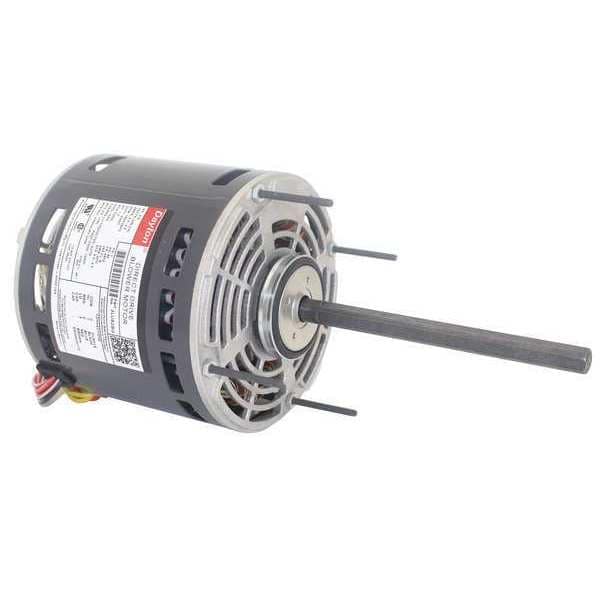

Motor, 1/2hp, D/D Blower

DAYTON| Zoro #: G1346265| Mfr #: 3LU82

$145.77 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1346265 Mfr #: 3LU82
Motor Mounting Position: All AngleIns. Class: B
Motor Application: HVAC/RItem: Direct Drive Blower Motor
Motor Service Factor: 1.00Phase: 1
Hz: 60Motor Thermal Protection: Auto
Motor Sub Application: Direct Drive Fan/BlowerMotor Design: Permanent Split Capacitor
Includes: 2-1/2" Ring Conversion KitApplication: Blowers, Fans and Air Circulators
Standards: UL Recognized (E37403), CSA Certified (258501)Overall Length: 12-3/16"
Resilient Ring Dia.: 2-1/4"Shaft Length: 6"
Ring to Ring Center: 5-3/4"Duty: Continuous
Voltage Compatibility: 115/208-230, 208-230, 208-240Max. Ambient Temp.: 40 Degrees C
Capacitor Required: 2MDV6Length Less Shaft: 6-3/16"
Shaft Dia.: 1/2"Nameplate RPM: 1625
Motor Bearings: SleeveHP: 1/2
Motor Shaft Rotation: CW/CCWBody Dia.: 5-5/8"
Full Load Amps: 3.8-4.4Motor Shaft Design: Double-Flat
Bolt Circle Dia.: 5-1/8"Motor Enclosure Design: Open Air-Over
Frame: 48YZMotor Mounting Type: Stud
Nominal Efficiency: 72.50%No. of Speeds: 3
Voltage: 208-230Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/2 HP, 1625 Nameplate RPM, Voltage 208-230, 3.8-4.4 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 6-3/16 In., Overall Length 12-3/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In.
