  11. Motor, 1/4hp, D/D Blower

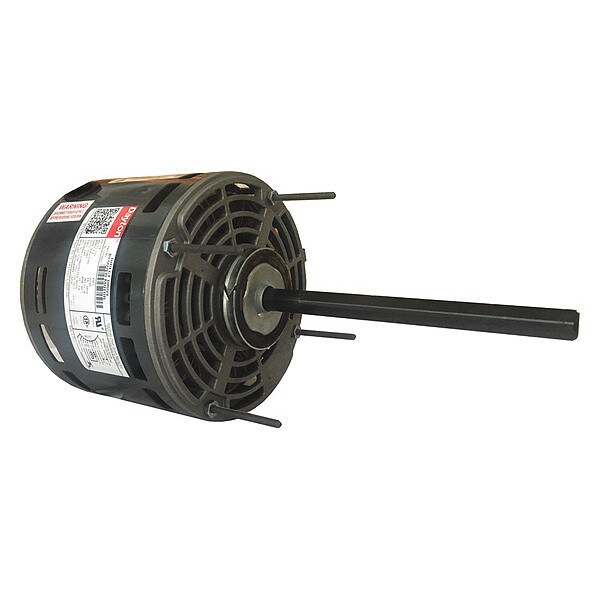

Dayton Motor, 1/4hp, D/D Blower 3LU73BG - main

Motor, 1/4hp, D/D Blower

  • Mfr # 3LU73BG

  • Zoro # G0452557

product price: $224.99
/ea
Free Shipping & Returns

Key Features

Motor Mounting Type
Ring/Stud
Standards
CSA Certification (258501), UL Recognition (E47479)
HP
1/4
Ins. Class
B
Includes
Kit for 2-1/2 in Hub Ring Assembly
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3LU73BG
Zoro #
G0452557
UPC #
190735291054
Country of Origin
China

Dimensions

Resilient Ring Dia.
2 1/4 in
Overall Length
11 7/16 in
Body Dia.
5 5/8 in
Length Less Shaft
5 7/16 in
Bolt Circle Dia.
5 1/8 in
Shaft Dia.
1/2 in
Shaft Length
6 in
Stud Size
8-32 NC 2A Thread x 1 5/8 in

Details

Motor Mounting Type
Ring/Stud
Standards
CSA Certification (258501), UL Recognition (E47479)
HP
1/4
Ins. Class
B
Includes
Kit for 2-1/2 in Hub Ring Assembly
Max. Ambient Temp.
40 Degrees C
No. of Speeds
3
Motor Shaft Rotation
CW/CCW
Ring to Ring Center
5 in
Motor Shaft Design
Flat
Nameplate RPM
1,625
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings
Sleeve
Nominal Efficiency
57.6 %
Item
Direct Drive Blower Motor
RPM Range
1,601-1,700
Motor Application
HVAC/R
Phase
Single
Capacitor Required
2MDV7
Motor Sub Application
Direct Drive
Hz
60 Hz
Motor Mounting Position
All Angle
Voltage
115V AC
Full Load Amps
3.4 A
Application
Blowers, Fans and Air Circulators
Motor Design
Permanent Split Capacitor
Duty
Continuous
Motor Thermal Protection
Auto
Motor Service Factor
1
Motor Enclosure Design
Open Air-Over
Frame
48YZ
Duty Cycle
Continuous
Number of Speeds
3
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 115V AC, 3.4 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 6 in, Shaft Dia. 1/2 in
