Shop All Permanent Split Capacitor Blower Motors
Dayton

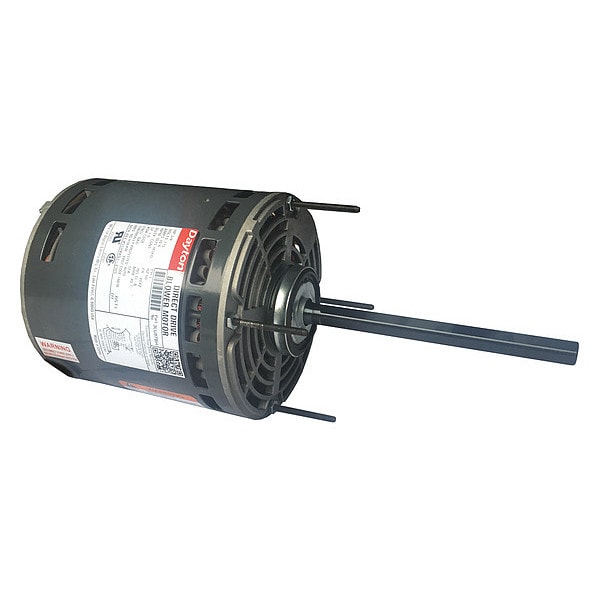

Motor, 3/4hp, D/D Blower

product price: $204.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shaft Length 6 in
  • Nominal Efficiency 64.5 %
  • Body Dia. 5 5/8 in
  • Nameplate RPM 1,075
  • Motor Design Permanent Split Capacitor
See all product information

Product Information

Dimensions

Shaft Length 6 in
Body Dia. 5 5/8 in
Shaft Dia. 1/2 in
Overall Length 12 15/16 in
Bolt Circle Dia. 5 1/8 in
Resilient Ring Dia. 2 1/4 in
Length Less Shaft 6 15/16 in
Stud Size 8-32 NC 2A Thread x 1 5/8 in

Details

Nominal Efficiency 64.5 %
Item Direct Drive Blower Motor
Nameplate RPM 1,075
Motor Design Permanent Split Capacitor
Application Blowers, Fans and Air Circulators
Standards CSA Certified (258501), UL Recognized (E37403)
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps 10.6 A
Motor Application HVAC/R
Motor Enclosure Design Open Air-Over
Motor Shaft Rotation CW/CCW
Ins. Class B
Motor Thermal Protection Auto
Frame 48YZ
Motor Shaft Design Double-Flat
Hz 60 Hz
Voltage 115V AC
Phase Single
Duty Continuous
Ring to Ring Center 6 1/2 in
Motor Sub Application Direct Drive
Max. Ambient Temp. 40 Degrees C
Includes Split Rings to Increase Ring Diameter to 2 1/2 in
Motor Mounting Position All Angle
No. of Speeds 4
Capacitor Required 2MDV9
RPM Range 1,001-1,100
HP 3/4
Motor Bearings Ball
Motor Mounting Type Ring/Stud
Motor Service Factor 1
Duty Cycle Continuous
Number of Speeds 4
Mounting Stud

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 4, Voltage 115V AC, Full Load Amps 10.6 A, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle
