  11. Motor, PSC, 1/4 HP, 1140 RPM, 115V, 48Y, OAO

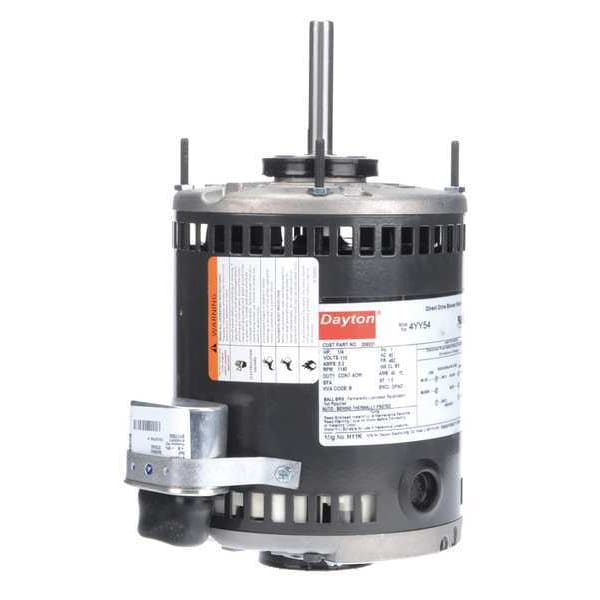

Dayton Motor, PSC, 1/4 HP, 1140 RPM, 115V, 48Y, OAO 4YY54 - main

Motor, PSC, 1/4 HP, 1140 RPM, 115V, 48Y, OAO

  • Mfr # 4YY54

  • Zoro # G3427952

product price: $196.99
/ea
Free Shipping & Returns

Key Features

Ring to Ring Center
7 3/8 in
Phase
Single
Stud Size
#10-32
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Includes
5 MFD 370VAC Capacitor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4YY54
Zoro #
G3427952
UPC #
190735339626
Country of Origin
Multiple

Dimensions

Stud Size
#10-32
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
7 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Shaft Length
2 1/2 in
Bolt Circle Dia.
5 1/8 in

Details

Ring to Ring Center
7 3/8 in
Phase
Single
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Includes
5 MFD 370VAC Capacitor
Motor Design
Permanent Split Capacitor
Ins. Class
B
Application
Replacement Motor for Mfr. No. 4HZ49, 4HZ51
Motor Mounting Type
Ring/Stud
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Motor Thermal Protection
Auto
Hz
60 Hz
Mounting Stud Location
Shaft End
Duty
Continuous
Replacement For
4HZ49, 4HZ51
Max. Ambient Temp.
40 Degrees C
Full Load Amps
3.2 A
Motor Mounting Position
All Angle
Motor Bearings
Ball
HP
1/4
Motor Application
HVAC/R
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Motor Sub Application
Direct Drive
Item
Direct Drive Blower Motor
Motor Enclosure Design
Open Air-Over
Motor Shaft Design
Flat
Voltage
115V AC
RPM Range
1,101-1,200
Motor Shaft Rotation
CW/CCW
Nameplate RPM
1,140
Capacitor Required
Included
Frame
48
Mounting Holes
(4) #10-32
Usable @ 208V
No
Stud Quantity
4
Number of Shafts
1
Duty Cycle
Continuous
Usable @ 200V
No
Conduit Box Position
F3
Mounting
Stud
Number of Speeds
1

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, 3.2 A Full Load Amps, 48 Frame, 60 Hz Hz, Replacement For 4HZ49, 4HZ51, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
