Shop DAYTON

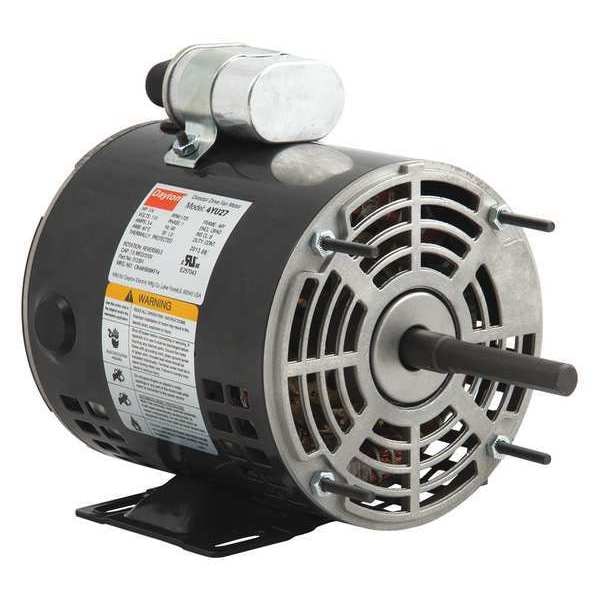

Motor, PSC, 1/4 HP, 1725 RPM, 115V, 48Z, OAO

  • Mfr # 4YU27

  • Zoro # G2584924

product price:
$
227.99
/ea
Free Shipping & Returns

Key Features

Shaft Dia.
1/2 in
Mounting Stud Pattern
3 5/8 in
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU27
Zoro #
G2584924
UPC #
190735339138
Country of Origin
Multiple

Dimensions

Shaft Dia.
1/2 in
Stud Size
#10-32
Shaft Length
3 1/4 in
Length Less Shaft
7 5/16 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Overall Length
9 19/32 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#10-32
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/8 in
Frame Size
48Y
Wire Rope Length
9 19/32 in
Length
9 19/32 in

Details

Mounting Stud Pattern
3 5/8 in
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Phase
Single
Motor Design
Permanent Split Capacitor
RPM Range
1,701-1,800
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Open Air-Over
HP
1/4
Application
Fan/Blower
Frame
48Y
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application
Direct Drive
Mounting Stud Location
4/Shaft End
Full Load Amps
3.6 A
Capacitor Required
Capacitor Included
Motor Shaft Rotation
CW/CCW
Replacement For
2RB87, 4HZ37G, 4HZ39G, 4HZ41G, 4HZ43G, 5DVT0
Motor Application
HVAC/R
Nameplate RPM
1,725
Duty
Continuous
Motor Service Factor
1
Ins. Class
B
Motor Mounting Type
Rigid Base
Item
Fan and Blower Motor
No. of Speeds
1
Motor Thermal Protection
Auto
Hz
60 Hz
Voltage
115V AC
Motor Bearings
Ball
Includes
Capacitor
Number of Shafts
1
Usable @ 208V
Not Usable at 208V
Mounting Holes
(4) #10-32
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Conduit Box Position
F3
Number of Speeds
1
Mounting
Rigid Base/Stud
Shaft Design
Flat
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Bearing Type
Ball
Drive Type
Direct Drive
Full Load Current @ 60 Hz
3.6 A
Sub Application
Ventilator
Motor Enclosure Type
Open Air Over
Mounting Position
All Angle
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 3.6 A Full Load Amps, 48Y Frame, 60 Hz Hz, Replacement For 2RB87, 4HZ37G, 4HZ39G, 4HZ41G, 4HZ43G, 5DVT0, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW
