Shop FASCO

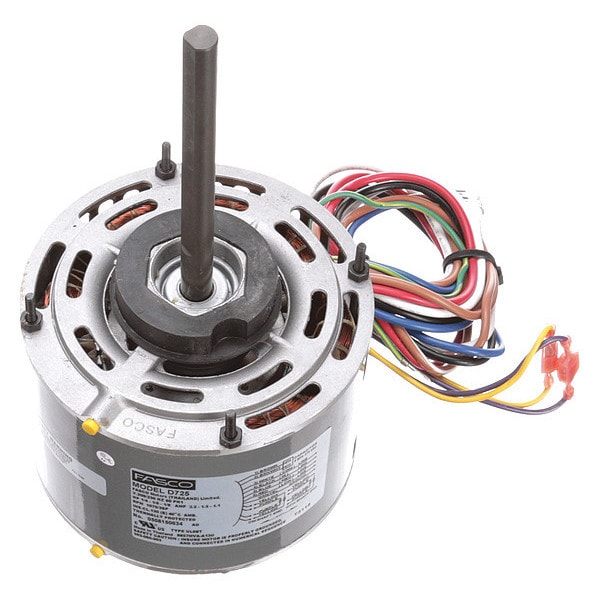

Direct Drive Blower Motor, 1/4 HP

  • Mfr # D725
  • Zoro # G6422897
product price:
$
118.99
/ea
Free Shipping & Returns

Key Features

Frame
48
Bolt Circle Dia.
5 1/4 in
Shaft Dia.
1/2 in
Phase
Single
Length Less Shaft
4 5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D725
Zoro #
G6422897
UPC #
818508021256
Country of Origin
Thailand

Dimensions

Bolt Circle Dia.
5 1/4 in
Shaft Dia.
1/2 in
Length Less Shaft
4 5/8 in
Manufacturers Warranty Length
1 yr
Mounting Stud Length
9/16 in
Shaft Length
6 in
Overall Length
10 11/16 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Resilient Ring Dia.
2 1/2 in
Lead Length
26 in
Resilient Ring Diameter
2 1/2 in
Mounting Stud Thread Size
#8-32
Frame Size
48
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/4 in
Shaft Diameter
1/2 in
Wire Rope Length
10 11/16 in
Length
10 11/16 in

Details

Frame
48
Phase
Single
Mounting Stud Location
4/Shaft End
Motor Thermal Protection
Auto
Motor Design
Permanent Split Capacitor
RPM Range
1,001-1,100
Ins. Class
B
Nameplate RPM
1,075
Motor Bearings
Sleeve
Standards
CSA Certified, UL Recognized
Ring to Ring Center
4 13/16 in
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Mounting Position
All Angle
Mounting Stud Pattern
3-11/16 in x 3-11/16 in
Capacitor Required
Capacitor Not Included
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Motor Shaft Rotation
CW/CCW
HP
1/4, 1/6, 1/8
Motor Shaft Design
Double-Flat
Duty
Continuous
Motor Service Factor
1
No. of Speeds
3
Nominal Efficiency
0.61 %
Motor Sub Application
Direct Drive Fan/Blower
Item
Fan and Blower Motor
Hz
60 Hz
Full Load Amps
2.2-1.5-1.1 A
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Ring/Stud
Voltage
208V AC to 230V AC
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Number of Shafts
1
Weight
12 lb
Duty Cycle
Continuous
Drive Type
Belt Drive
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
2.2-1.5-1.1 A
Frequency
60 Hz
Manufacturers Warranty
1 yr
Number of Speeds
3
Sub Application
General Purpose
Bearing Type
Sleeve
Insulation Class
B
Application
Fan/Blower
Shaft Design
Double Flat
Efficiency Rating
Standard Efficiency (IE1)
Ambient Temperature - Maximum
40 Degrees C
Product Type
Fan and Blower Motor
Motor Enclosure Type
Open Drip Proof
Wattage
190 W
Frame Material
Steel

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp, 1/6 hp, 1/8 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 2.2-1.5-1.1 A Full Load Amps, 48 Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof
