  11. Motor, PSC, 1/6 HP, 1140 RPM, 115V, 48Z, OAO

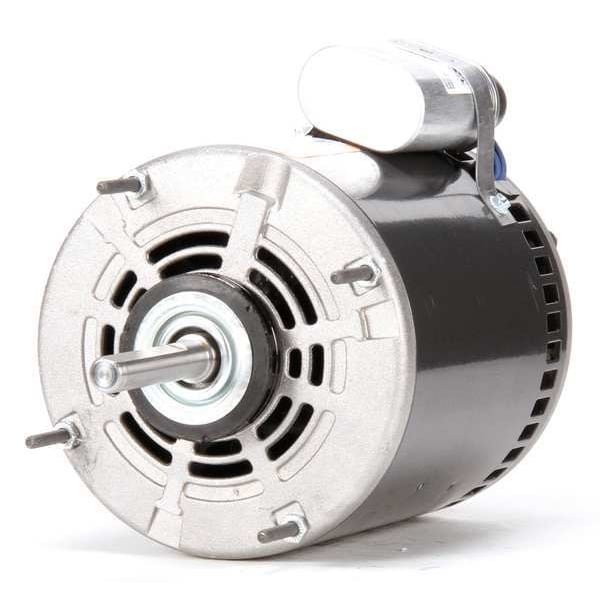

Dayton Motor, PSC, 1/6 HP, 1140 RPM, 115V, 48Z, OAO 4YU23 - main

Motor, PSC, 1/6 HP, 1140 RPM, 115V, 48Z, OAO

  • Mfr # 4YU23

  • Zoro # G1694673

product price: $170.99
/ea
Free Shipping & Returns

Key Features

Mounting Stud Location
Shaft End
Replacement For
4HZ36, 4HZ38, 4HZ40, 4HZ42, 5DVR9, 5DVT1
Motor Mounting Position
All Angle
RPM Range
1,101-1,200
Shaft Dia.
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4YU23
Zoro #
G1694673
UPC #
190735339107
Country of Origin
China

Dimensions

Shaft Dia.
1/2 in
Bolt Circle Dia.
5 1/8 in
Length Less Shaft
7 5/16 in
Shaft Length
2 1/2 in
Resilient Ring Dia.
2 1/4 in
Body Dia.
5 5/8 in
Stud Size
#10-32

Details

Mounting Stud Location
Shaft End
Replacement For
4HZ36, 4HZ38, 4HZ40, 4HZ42, 5DVR9, 5DVT1
Motor Mounting Position
All Angle
RPM Range
1,101-1,200
Ring to Ring Center
6 7/8 in
Ins. Class
B
Hz
60 Hz
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Full Load Amps
2.2 A
No. of Speeds
1
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Motor Bearings
Ball
Nameplate RPM
1,140
Item
Direct Drive Blower Motor
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Mounting Type
Ring/Stud
Application
Replacement Motor for Mfr. No. 4HZ36, 4HZ38, 4HZ40, 4HZ42, 5DVR9, 5DVT1
Capacitor Required
Included
HP
1/6
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Direct Drive
Motor Service Factor
1
Voltage
115V AC
Standards
CSA Certified, UL Recognized
Motor Design
Permanent Split Capacitor
Duty
Continuous
Motor Enclosure Design
Open Air-Over
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Shaft Design
Flat
Mounting Holes
(4) #10-32
Duty Cycle
Continuous
Usable @ 200V
No
Number of Shafts
1
Includes
Capacitor
Usable @ 208V
No
Stud Quantity
4
Conduit Box Position
F3
Number of Speeds
1
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, 2.2 A Full Load Amps, 48Y Frame, 60 Hz Hz, Replacement For 4HZ36, 4HZ38, 4HZ40, 4HZ42, 5DVR9, 5DVT1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW
