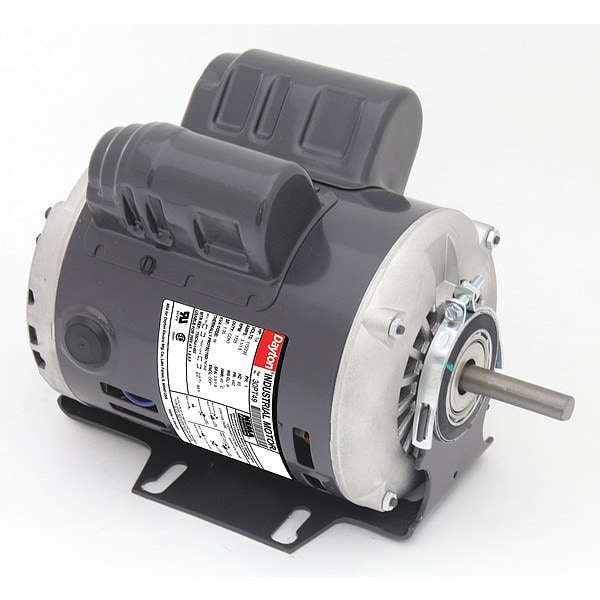

MTR, CS/CR, ODP, 1/4 HP, 1725, 48Z, EFF 68.5
Mfr # 30PT49
Zoro # G8565216
product price: $332.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1/4 hp
RPM Range
1,701-1,800
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
30PT49
Zoro #
G8565216
UPC #
190735248362
Country of Origin
Mexico
Dimensions
Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in
Shaft Dia.
1/2 in
Length Less Shaft
8 3/8 in
Overall Length
10 5/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.1/1.5 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Restrictions
Indicates a new DOE energy compliant motor.
