Dayton

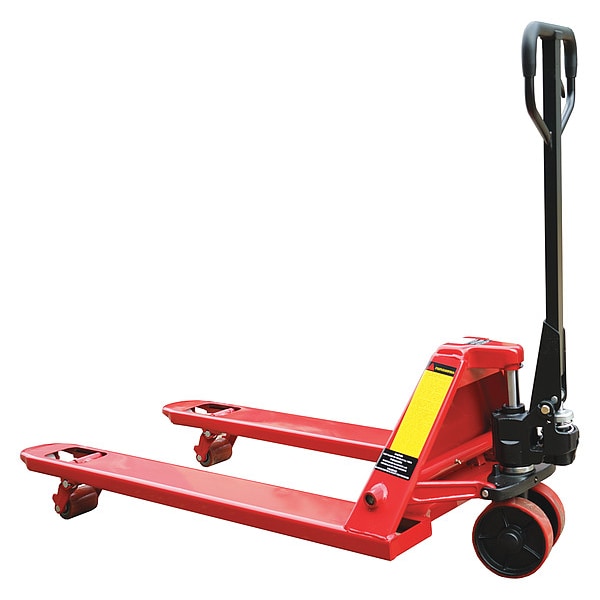

Pallet Jack, 5500 lb. Cap., Quick Lift

original price: $662.89
19% off
new price: $532.99
/ea
Item requires special delivery charges. A $135.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Overall Height 48 in
  • Overall Length 63 1/2 in
  • Overall Width 27 in
  • Color Red
  • Load Capacity 5,500 lb
See all product information

Product Information

Dimensions

Overall Height 48 in
Overall Length 63 1/2 in
Overall Width 27 in
Width Across Forks 27 in
Width Between Forks 14 3/8 in
Main Wheel Size 7 in
Roller Dia. 2 29/32 in
Fork Height Lowered 2 7/8 in
Fork Width 6 1/4 in
Fork Height Raised 7 1/2 in
Fork Length 48 in
Load Wheel Diameter 2 29/32 in
Strokes To Maximum Lift Height 16
Maximum Lifting Height 7 1/2 in
Overall LxWxH 63 1/2 in x 27 in x 48 in
Minimum Lifting Height 2 7/8 in
Steer Wheel Diameter 7 in

Details

Color Red
Load Capacity 5,500 lb
Item Fast-Lift Manual Pallet Jack
Handle Type Ergonomic
Assembled Yes
Frame Material Steel
Finish Powder Coated
Frame Finish Powder Coated
Steering Arc 210 Degrees
Construction Steel
Roller Material Polyurethane
Handle Cushion Grip
Grease Fittings (12) Internal
Features Quick Lift
Bearings Ball
Wheel Material Polyurethane
Pallet Jack Operation Manual
Wheel Base 51 1/2 in
Fork Style Standard
Number of Batteries 0
Load Wheel/Tread Material Polyurethane
Operation Manual
Fork Thickness 1 7/8 in
Fork Type Fixed
For Pallet Type Open/Closed
For Surface Type Concrete
Load Wheel Bearing Type Ball Bearing
Steer Wheel/Tread Material Polyurethane
Handle Material Steel

Description

5,500 lb, Fork Style Standard, Fork Type Fixed, Fork Length 48 in, Fork Width 6 1/4 in, Width Across Forks 27 in, Width Between Forks 14 3/8 in, Overall Length 63 1/2 in, Overall Width 27 in, Overall Height 48 in, Frame Material Steel, Minimum Lifting Height 2 7/8 in, Maximum Lifting Height 7 1/2 in, Fork LxW 48 in x 6 1/4 in, Overall LxWxH 63 1/2 in x 27 in x 48 in
