Dayton

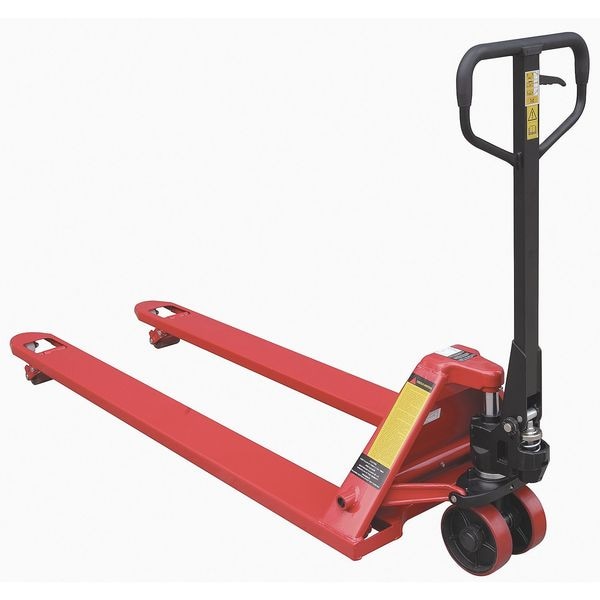

Pallet Jack, 86-1/4inLx27inWx47inH

product price: $657.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Overall Height 48-3/8"
  • Overall Length 87-3/8"
  • Overall Width 27"
  • Color Red
  • Load Capacity 4400 lb
See all product information

Product Information

Dimensions

Overall Height 48-3/8"
Overall Length 87-3/8"
Overall Width 27"
Main Wheel Size 7 in
Fork Length 70in
Fork Height Raised 7 3/4 in
Fork Height Lowered 3 in
Roller Dia. 2-29/32"
Width Across Forks 27 in
Width Between Forks 14 1/2 in
Fork Width 6-1/4 in
Steer Wheel Diameter 7 in
Load Wheel Diameter 2 29/32 in
Strokes To Maximum Lift Height 16
Maximum Lifting Height 7 3/4 in
Overall LxWxH 87 3/8 in x 27 in x 48 3/8 in
Minimum Lifting Height 3 in

Details

Color Red
Load Capacity 4400 lb
Item Pallet Jack
Handle Type Ergonomic
Assembled Yes
Handle Steel
Grease Fittings (2) Internal and (7) Bushing
Finish Powder Coated
Features Long Truck
Roller Material Mold on Polyurethane
Pallet Jack Operation Manual
Key Pallet Jack Feature General Purpose
Wheel Base 71-7/8 in
Bearings Sealed Ball
Construction Steel
Wheel Material Mold on Polyurethane
Pallet Jack Style Standard
Steering Arc 205 Degrees
Frame Material Steel
Frame Finish Powder Coated
For Surface Type Concrete
For Pallet Type Open/Closed
Number of Batteries 0
Operation Manual
Fork Style Long
Load Wheel/Tread Material Polyurethane
Fork Thickness 1 7/8 in
Load Wheel Bearing Type Ball Bearing
Handle Material Steel
Steer Wheel/Tread Material Polyurethane
Fork Type Fixed

Description

4,400 lb, Fork Style Long, Fork Type Fixed, Fork Length 70 in, Fork Width 6 1/4 in, Width Across Forks 27 in, Width Between Forks 14 1/2 in, Overall Length 87 3/8 in, Overall Width 27 in, Overall Height 48 3/8 in, Frame Material Steel, Minimum Lifting Height 3 in, Maximum Lifting Height 7 3/4 in, Fork LxW 70 in x 6 1/4 in, Overall LxWxH 87 3/8 in x 27 in x 48 3/8 in
