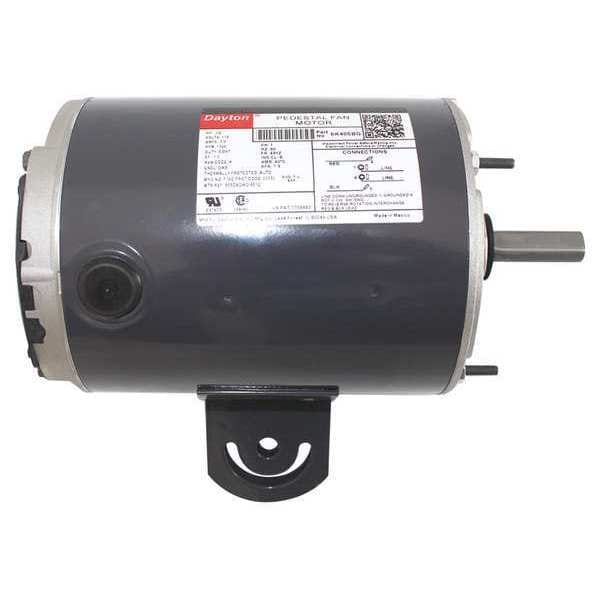

Dayton Pedestal Fan Motor, 1/2 hp 6K405 - main

Pedestal Fan Motor, 1/2 hp

  • Mfr # 6K405

  • Zoro # G1537322

product price:  $207.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/2
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6K405
Zoro #
G1537322
UPC #
190735365861
Country of Origin
Multiple

Dimensions

Shaft Length
2 in
Body Dia.
5 5/8 in
Shaft Dia.
5/8 in
Overall Length
10 1/8 in
Shaft Diameter
5/8 in
Frame Size
48YZ
Body Diameter
5.6 in

Details

Item
Pedestal Fan Motor
Motor Design
Split-Phase
Phase
Single
HP
1/2
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Open Air-Over
Motor Service Factor
1
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Yoke
10 Ft. Cord and Pull Chain Switch
No
Ambient Temperature
40 Degrees C
Nameplate RPM
1,725
Includes
Water Slinger
Hz
60 Hz
Motor Sub Application
Pedestal Fan
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty
Continuous
Full Load Amps
7.9 A
Capacitor Required
Capacitor Not Required
Motor Application
HVAC/R
Motor Bearings
Ball
Ins. Class
B
Application
Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
Motor Shaft Design
Flat
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Bearing Type
Ball
Number of Speeds
1
Frequency
60 Hz
Full Load Current @ 60 Hz
7.9 A
Nameplate Service Factor @ 60 Hz
1
Sub Application
Pedestal Fan
Product Type
Pedestal Fan Motor
Insulation Class
B
Drive Type
Direct Drive
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over

Description

Pedestal Fan Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 7.9 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 in, Shaft Dia. 5/8 in
