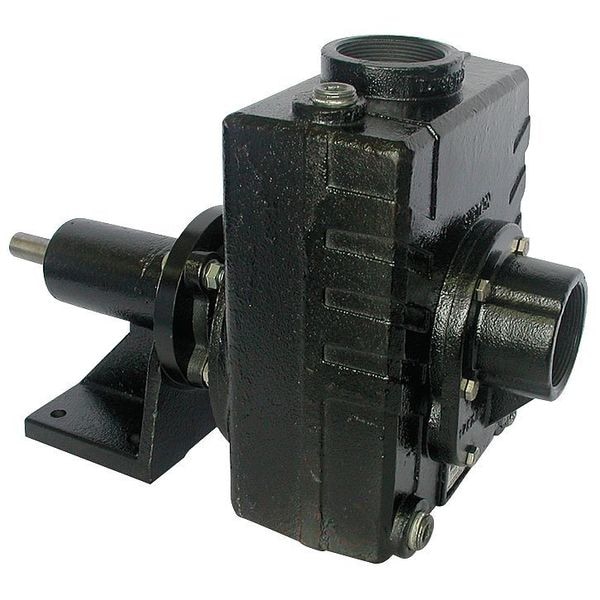

Pedestal Pump, Cast Iron, 3 HP
Mfr # 5PXX8
Zoro # G2254375
product price: $768.99
/ea
Free Shipping & Returns
Key Features
HP Required
3 hp
Inlet
2 in
Outlet
2 in
Wetted Materials
Cast Iron, Carbon/Ceramic, Buna N, Stainless Steel, Carbon Steel
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5PXX8
Zoro #
G2254375
UPC #
190735350263
Country of Origin
China
Dimensions
Height
11 3/16 in
Manufacturers Warranty Length
1 yr
Length
15 3/4 in
Width
7 5/8 in
Max. Dia. Solids
3/8
Overall Width
7.63 in
Overall Length
15.75 in
Overall Height
11.19 in
Compatible Intake Pipe Size
2 in
Manufacturer Warranty Length
1 yr
Sized for Horsepower
3 hp
Solid Diameter (Maximum)
0.38 in
Compatible Discharge Pipe Size
2 in
Shaft Outside Diameter
3/4 in
Description
Pedestal Pump, Pump Housing Material Cast Iron, Sized for Horsepower 3 hp, Flow Rate @ 10 ft of Head (Maximum) 82 gpm, Flow Rate @ 20 ft of Head (Maximum) 71 gpm, Flow Rate @ 30 ft of Head (Maximum) 60 gpm, Flow Rate @ 40 ft of Head (Maximum) 55 gpm, Maximum Feet of Head 73 ft, Intake Type NPT, Compatible Intake Pipe Size 2 in, Compatible Discharge Pipe Size 2 in, Suction Lift (Maximum) 25 ft, Shaft Outside Diameter 3/4 in, Priming Self-Priming, NPSHr 34 psi, Best Efficiency Flow 60 gpm
Restrictions
This is a restricted item in the USA. It cannot be used for potable water applications.
