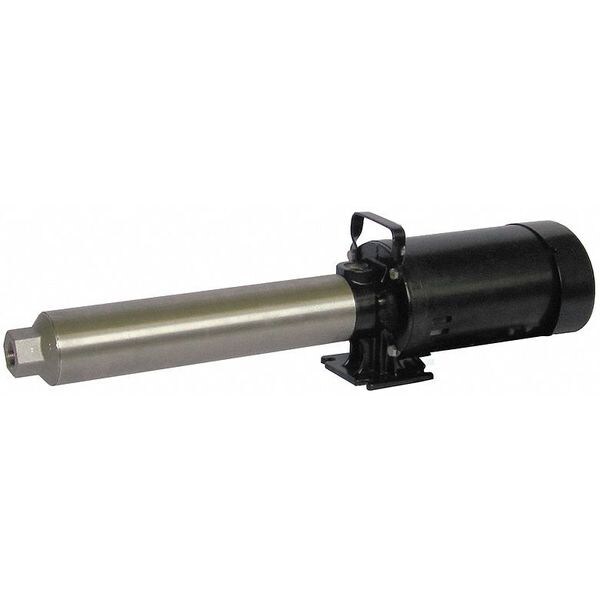

Pump, Booster, SS, 1 HP, 208-230/460V

DAYTON| Zoro #: G0368006| Mfr #: 5NYC3

$787.26 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0368006 Mfr #: 5NYC3
Hz: 60Motor Ambient Temp. Rating: 65 Degrees C
Bearing Type: Permanently Lubricated, Maintenance FreeFrame: 56J
Includes: ManualMax. Case Pressure: 300 psi
Width: 6-1/2"Manufacturers Warranty Length: 1 yr.
Agency Compliance: CSA, CUS ListedGPM @ 200 PSI: -
Impeller Material: NorylImpeller Type: Closed
Max. Liquid Temp.: 140 Degrees FSuction Lift: 10 ft.
Motor Enclosure: ODPItem: Multi-Stage Booster Pump
Duty: ContinuousSeal Material: Carbon/Silicon Carbide, SS spring and Viton
Wetted Materials: Noryl, Carbon/Ceramic, Viton, Stainless SteelGPM @ 160 PSI: 6.3
Item: Multi-Stage Booster PumpHP: 1
Phase: 3Voltage: 208-230/460
Amps: 5.4-5.2/2.6Stages: 14
GPM @ 10 PSI: 15.4Includes: Manual
GPM @ 20 PSI: 14.8GPM @ 40 PSI: 14.6
GPM @ 60 PSI: 13.5GPM @ 80 PSI: 11.7
GPM @ 100 PSI: 11.5GPM @ 120 PSI: 10
GPM @ 140 PSI: 8.5GPM @ 180 PSI: 3.3000000000000003
Housing Material: Stainless SteelMax. Pressure: 171 psi
Outlet: 3/4" FNPTLength: 28-3/4"
Inlet: 3/4" FNPTHeight: 9-1/2"
Country of Origin (subject to change): China

Product Description

Multi-Stage Booster Pump, 1 HP, 3 Phase, Voltage 208-230/460, 5.4-5.2/2.6 Amps, 3/4 In. FNPT Inlet, 3/4 In. FNPT Outlet, Stages 14, GPM @ 10 PSI 15.4, Max. Pressure 171 psi, Housing Material Stainless Steel, Impeller Material Noryl, Impeller Type Closed, Max. Case Pressure 300 psi, Max. Liquid Temp. 140 Degrees F, Motor Enclosure ODP, Seal Material Carbon/Silicon Carbide, SS spring and Viton, Wetted Materials Noryl, Carbon/Ceramic, Viton, Stainless Steel, Agency Compliance CSA, CUS Listed
