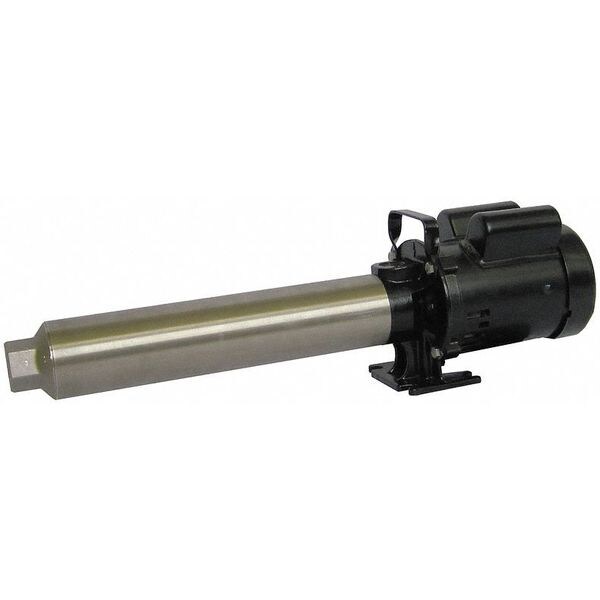

Pump, Booster, SS, 1/2 HP, 115/230V

DAYTON| Zoro #: G2134553| Mfr #: 5NYA9

$719.20 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2134553 Mfr #: 5NYA9
Impeller Type: ClosedHz: 60
Motor Ambient Temp. Rating: 65 Degrees CBearing Type: Permanently Lubricated, Maintenance Free
Frame: 56JIncludes: Manual
Max. Case Pressure: 300 psiItem: Multi-Stage Booster Pump
Width: 6-1/2"Manufacturers Warranty Length: 1 yr.
Agency Compliance: CSA, CUS ListedGPM @ 200 PSI: -
Impeller Material: NorylMax. Liquid Temp.: 140 Degrees F
Suction Lift: 10 ft.Motor Enclosure: ODP
Duty: ContinuousSeal Material: Carbon/Silicon Carbide, SS spring and Viton
Wetted Materials: Noryl, Carbon/Ceramic, Viton, Stainless SteelItem: Multi-Stage Booster Pump
HP: 1/2Phase: 1
Voltage: 115/230Amps: 8.4/4.2
Stages: 12GPM @ 10 PSI: 9.8
Motor Type: PSCIncludes: Manual
GPM @ 20 PSI: 9.2GPM @ 40 PSI: 8.3
GPM @ 60 PSI: 7.2GPM @ 80 PSI: 5.1
GPM @ 100 PSI: 4.1Max. Pressure: 120 psi
Outlet: 3/4" FNPTLength: 24-1/4"
Inlet: 3/4" FNPTHeight: 9"
Housing Material: Stainless SteelCountry of Origin (subject to change): China

Product Description

Multi-Stage Booster Pump, 1/2 HP, 1 Phase, Voltage 115/230, 8.4/4.2 Amps, 3/4 In. FNPT Inlet, 3/4 In. FNPT Outlet, Stages 12, GPM @ 10 PSI 9.8, Max. Pressure 120 psi, Housing Material Stainless Steel, Impeller Material Noryl, Impeller Type Closed, Max. Case Pressure 300 psi, Max. Liquid Temp. 140 Degrees F, Motor Enclosure ODP, Seal Material Carbon/Silicon Carbide, SS spring and Viton, Wetted Materials Noryl, Carbon/Ceramic, Viton, Stainless Steel, Motor Type PSC
