Shop DAYTON

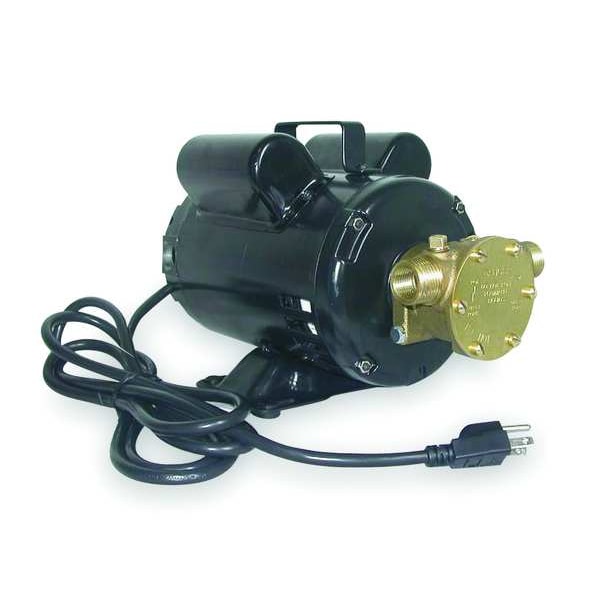

Pump, Bronze, 1/3 HP, 115/230V, 7.2/3.6 Amps

  • Mfr # 3ACB9

  • Zoro # G2879493

product price:
$
966.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Voltage
115/230
Amps
7.2/3.6
Motor Enclosure
Open Drip Proof
NEMA Motor Frame
56YZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3ACB9
Zoro #
G2879493
UPC #
190735279090
Country of Origin
China

Dimensions

Height (In.)
8 19/64 in
Width (In.)
6 45/64 in
Length (In.)
13 in
Cord Length
8 ft
Overall Length
11.4 in
Overall Width
6.7 in
Overall Height
7.9 in
Shaft Outer Diameter
1/2 in
Impeller Diameter
2 1/4 in
Media Intake Connection Size
1/2 in
Discharge Connection Size
3/4 in
Inlet Internal Diameter
1/2 in
Discharge Internal Diameter
1/2 in
Inlet External Diameter
3/4 in
Discharge External Diameter
3/4 in
Wire Rope Length
11.4 in
Length
11.4 in

Details

Item
Utility Pump
HP
1/3 hp
Voltage
115/230
Amps
7.2/3.6
Motor Enclosure
Open Drip Proof
NEMA Motor Frame
56YZ
Inlet/Outlet (In.)
1/2 NPT x 3/4 GHT
Max. Head (Ft.)
50 ft
Max. Pressure (PSI)
21.6 psi
Max. Viscosity
5,000 SUS
Type
Flexible Impeller
Characteristics
Positive Displacement Pumping Action Without Metal-to-Metal Contact.
GPM of Water @ 30 Ft. of Head
6.8 gpm
RPM
1,725 RPM
GPM of Water @ 10 Ft. of Head
9.6 gpm
Impeller Material
Buna-N
Temp. Range (F)
50 to 180
GPM of Water @ 20 Ft. of Head
8.1 gpm
GPM of Water @ 40 Ft. of Head
4.4 gpm
Prime in Feet
16-20 Wet
Suction Lift (Ft.)
16-20 Wet, 20-22 Wet
Seal
Nitrile Lip
Self-Priming
Yes
Includes
Carrying Handle, Manual
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
Max. SSU @ 1725 RPM
5,000 SUS
Housing Material
Brass
Motor Type
Capacitor-Start/Run
Shaft Material
Stainless Steel
Seal Type
Lip
Compatible Motor Frame
56YZ
Media Temperature - Maximum
180 Degrees F
Wetted Material
Brass, Buna-N
Motor Speed - Maximum
1,725 RPM
Operating Pressure - Maximum
21.6 psi
Viscosity - Maximum
5,000 SUS
Flow Rate @ 10 ft of Head - Maximum
9.6 gpm
Current
7.2 A
Flow Rate @ 40 ft of Head - Maximum
4.4 gpm
Media Intake Connection Type
FNPT
Horsepower - Maximum
1/3 hp
Feet of Head - Maximum
50 ft
Phase
Single
Flow Rate @ 20 ft of Head - Maximum
8.1 gpm
Nameplate Voltage
115/230V AC
Suction Lift - Maximum
20 ft
Flow Rate @ 30 ft of Head - Maximum
6.8 gpm
Bearing Type
Ball
Media Temperature - Minimum
0 Degrees F
For Media Type
Hydraulic Fluids, Petroleum Oils, Silicone Grease
Bearing Material
Stainless Steel
Seal Material
Buna-N
Priming
Self-Priming
Motor Mounting Type
Horizontal
Discharge Connection Type
FNPT
Flow Rate @ 1 ft of Head - Maximum
10 gpm
Frequency
60 Hz
Discharge Internal Gender
Female
Inlet Internal Standard
NPT
Inlet External Standard
NPT
Inlet Internal Gender
Female
Inlet External Gender
Male
Discharge External Standard
NPT
Discharge External Gender
Male
Discharge Internal Standard
NPT

Description

Utility Pump, Housing Material Brass, Horsepower - Maximum 1/3 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 10 ft of Head - Maximum 9.6 gpm, Viscosity - Maximum 5,000 SUS, Feet of Head - Maximum 50 ft, Discharge Connection Size 3/4 in, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Impeller Material Buna-N, Discharge Connection Type FNPT, Cord Length 8 ft, Priming Self-Priming, Operating Pressure - Maximum 21.6 psi, Suction Lift - Maximum 20 ft
