  9. Pump, Bronze, 1/3 HP, 115/230V, 9.4/4.7 Amps

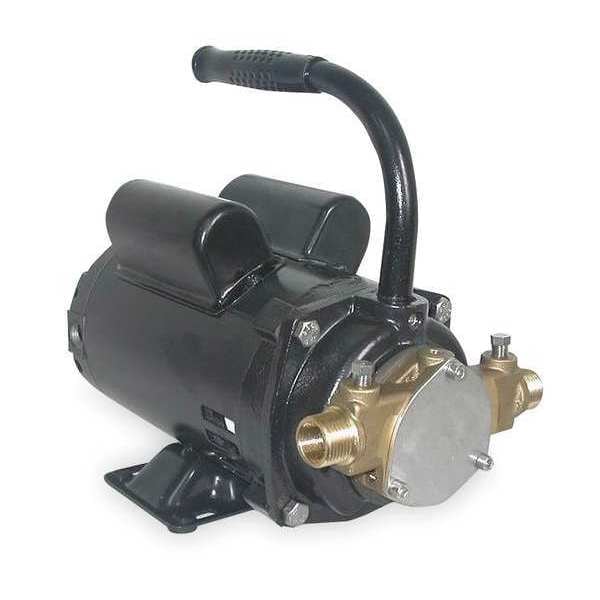

Dayton Pump, Bronze, 1/3 HP, 115/230V, 9.4/4.7 Amps 3ABZ4 - main

Pump, Bronze, 1/3 HP, 115/230V, 9.4/4.7 Amps

  • Mfr # 3ABZ4

  • Zoro # G0971932

product price: $1,554.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Voltage
115/230
Amps
9.4/4.7
Motor Enclosure
Open Drip Proof
NEMA Motor Frame
56YZ
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3ABZ4
Zoro #
G0971932
UPC #
190735278864
Country of Origin
China

Dimensions

Length (In.)
11 45/64 in
Width (In.)
6 45/64 in
Height (In.)
12 in
Overall Length
13.3 in
Overall Height
10.7 in
Overall Width
6.5 in
Impeller Diameter
2 1/2 in
Discharge Connection Size
1/2 in
Media Intake Connection Size
1/2 in
Shaft Outer Diameter
5/8 in
Discharge External Diameter
3/4 in
Inlet External Diameter
3/4 in
Discharge Internal Diameter
1/2 in
Inlet Internal Diameter
1/2 in

Details

Item
Utility Pump
HP
1/3 hp
Voltage
115/230
Amps
9.4/4.7
Motor Enclosure
Open Drip Proof
NEMA Motor Frame
56YZ
Inlet/Outlet (In.)
1/2 NPT x 3/4 GHT
Max. Head (Ft.)
76 ft
Max. Pressure (PSI)
32.9 psi
Self-Priming
Yes
Suction Lift (Ft.)
10
Prime in Feet
10 Feet and 15 Feet with Foot Valve and Pumps Flooded
GPM of Water @ 60 Ft. of Head
3.8 gpm
Type
Flexible Impeller
Includes
Carrying Handle, Manual
Shaft Material
Stainless Steel
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
Impeller Material
Buna-N
Seal
Nitrile Lip
Temp. Range (F)
0 to 180
GPM of Water @ 10 Ft. of Head
7.1 gpm
GPM of Water @ 20 Ft. of Head
6.7 gpm
RPM
1,725 RPM
GPM of Water @ 40 Ft. of Head
5.8 gpm
Characteristics
Positive Displacement Pumping Action Without Metal-to-Metal Contact.
Housing Material
Brass
Motor Type
Capacitor-Start/Run
Max. SSU @ 1725 RPM
5,000 SUS
Max. Viscosity
5,000 SUS
GPM of Water @ 30 Ft. of Head
6.1 gpm
Flow Rate @ 30 ft of Head - Maximum
6.1 gpm
Current
5 A
Operating Pressure - Maximum
32.9 psi
Flow Rate @ 20 ft of Head - Maximum
6.7 gpm
Nameplate Voltage
115/230V AC
Suction Lift - Maximum
10 ft
Phase
Single
Motor Speed - Maximum
1,725 RPM
Flow Rate @ 60 ft of Head - Maximum
3.8 gpm
Seal Type
Lip
Horsepower - Maximum
1/3 hp
Seal Material
Buna-N
Compatible Motor Frame
56YZ
Discharge Connection Type
FNPT
Motor Mounting Type
Horizontal
Flow Rate @ 1 ft of Head - Maximum
7.4 gpm
Flow Rate @ 50 ft of Head - Maximum
4.6 gpm
Flow Rate @ 40 ft of Head - Maximum
5.8 gpm
Bearing Material
Stainless Steel
Feet of Head - Maximum
76 ft
Wetted Material
Brass, Buna-N, Stainless Steel
Viscosity - Maximum
5,000 SUS
Media Temperature - Maximum
180 Degrees F
For Media Type
Hydraulic Fluids, Petroleum Oils, Silicone Grease
Bearing Type
Ball
Frequency
60 Hz
Media Intake Connection Type
FNPT
Flow Rate @ 10 ft of Head - Maximum
7.1 gpm
Priming
Self-Priming
Media Temperature - Minimum
0 Degrees F
Inlet Internal Gender
Female
Inlet External Standard
Garden Hose Thread
Inlet Internal Standard
NPT
Discharge External Gender
Male
Discharge External Standard
Garden Hose Thread
Discharge Internal Gender
Female
Inlet External Gender
Male
Discharge Internal Standard
NPT

Description

Utility Pump, Housing Material Brass, Horsepower - Maximum 1/3 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 10 ft of Head - Maximum 7.1 gpm, Viscosity - Maximum 5,000 SUS, Feet of Head - Maximum 76 ft, Discharge Connection Size 1/2 in, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Impeller Material Buna-N, Discharge Connection Type FNPT, Cord Length Not Applicable, Priming Self-Priming, Operating Pressure - Maximum 32.9 psi, Suction Lift - Maximum 10 ft
