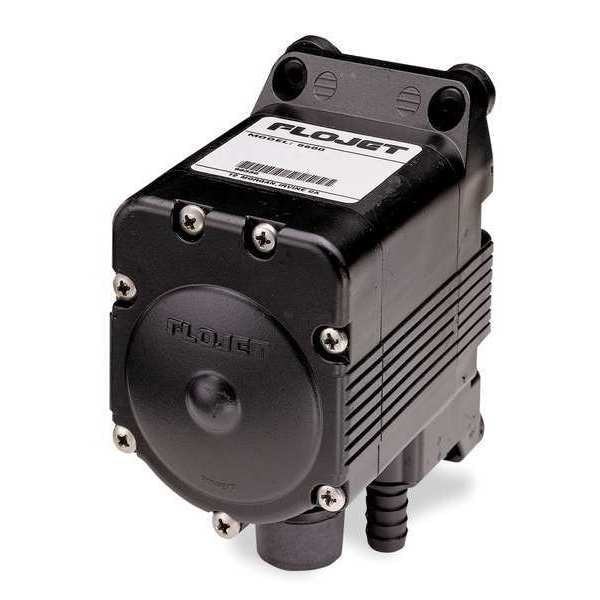

Double Diaphragm Pump, Polypropylene, Air Operated, Viton, 5 gpm GPM 120 Degrees F

  • Mfr # G573215Z
  • Zoro # G0857202
product price:
$
305.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
FKM
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G573215Z
Zoro #
G0857202
UPC #
094703468274
Country of Origin
Viet Nam

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Overall Height
5.8 in
Media Discharge Connection Size
1/2 in
Media Intake Connection Size
1/2 in
Overall Width
3.3 in
Solid Diameter (Maximum)
0.13 in
Overall Length
4.5 in
Wire Rope Length
4.5 in
Length
4.5 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
FKM
Valve Type
Ball
Air Intake Connection Type
Barbed
Check Seat Material
FKM
Diaphragm Material
Viton®
Media Temperature (Maximum)
120 Degrees F
Operating Pressure (Maximum)
80 psi
Self-Priming Dry
15 ft
Self-Priming Wet
20 ft
Pump Operation Type
Air
Inlet/Outlet
1/2 in
Media Intake Connection Type
Barbed
Flow Rate (Maximum)
5 gpm
Wetted Housing Material
Polypropylene
Media Discharge Connection Type
Barbed
Priming
Self-Priming
Media Intake Location
Bottom
Center Section Material
FKM/Polypropylene
Diaphragm Reinforcement
Not Reinforced
Includes Solenoid
No Solenoid Included
Media Intake Port Configuration
Center Vertical
Manifold Port Connection Type
Single Port
Includes
3/8 ST HB
Standards
CE Marked
Mounting Hardware Material
Stainless Steel
For Use With Potable Systems
No
Material Conductivity
Non-Conductive
Includes Clean In Place Technology
No Clean In Place Included
Chemical Compatibility
Acid, Hydrocarbons, D-Limonene, Oil, Transmission Fluid
Wetted Body Material
Polypropylene
Fluid Chamber Assembly Type
Bolted
Media Discharge Location
Bottom

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 1/4 in, Air Intake Connection Type Barbed, Check Seat Material FKM, Diaphragm Material Viton, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 5 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type Barbed, Media Discharge Location Bottom, Media Intake Connection Size 1/2 in, Media Intake Connection Type Barbed, Media Intake Location Bottom
