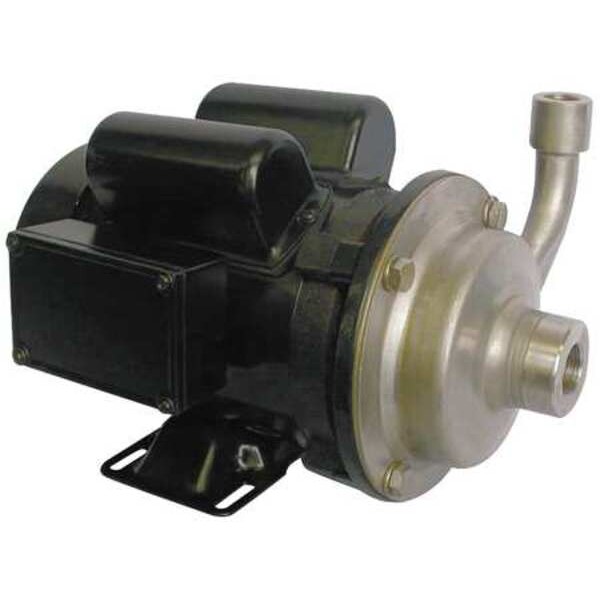

Dayton Pump, Centrifugal, SS, 1/3 HP, 1 PH 5WXR9 - main

Pump, Centrifugal, SS, 1/3 HP, 1 PH

  • Mfr # 5WXR9

  • Zoro # G2394235

product price: $804.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
21 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5WXR9
Zoro #
G2394235
UPC #
190735354810
Country of Origin
China

Dimensions

Length
12 5/8 in
Height
7 7/8 in
Max. Dia. Solids
1/8 in
Manufacturers Warranty Length
1 yr
Width
9 1/4 in
Overall Width
9.3 in
Overall Height
7.9 in
Overall Length
12.6 in
Intake Pipe Size
3/4 in
Solid Diameter (Maximum)
0.13 in
Discharge Pipe Size
1/2 in
Shaft Outer Diameter
7/16 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
1/3 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
21 gpm @ 5 ft
Max. Head
48 ft
Best Efficiency GPM @ Head
10 gpm @ 26 ft
Inlet
3/4 in NPT
Outlet
1/2 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Shaft Material
Stainless Steel
Best Efficiency Range GPM @ Head
19 to 6 gpm @ 11 to 28 ft
GPM of Water @ 25 Ft. of Head
11
Drain Plug
No
NEMA/IEC Frame
56J
Max. Liquid Temp.
300 Degrees F
Agency Compliance
CUS
Min. GPM @ Head
1 gpm @ 40 ft
Amps
6.8/3.4
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
GPM of Water @ 20 Ft. of Head
15
Max. Case Pressure
150 psi
Impeller Type
Closed
GPM of Water @ 10 Ft. of Head
20
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
Bearing Type
Ball
GPM of Water @ 5 Ft. of Head
21
Screw Material
Stainless Steel
Duty
Continuous
Seal Type
Mechanical
Motor RPM
3,450 RPM
Max. Specific Gravity
1.0
Motor Type
Capacitor Start Capacitor Run
GPM of Water @ 15 Ft. of Head
18
Includes
Manual
Max. Fluid Viscosity
260 SUS
Service Factor
1.6
Hz
60
Inlet Pressure
128 psi
Port Rotation
90 Degrees Increments
Impeller Material
316 Stainless Steel
GPM of Water @ 40 Ft. of Head
1
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
GPM of Water @ 30 Ft. of Head
4
Volute Material
316 Stainless Steel
Standards
CUS
Duty Cycle
Continuous
Media Temperature (Minimum)
40 Degrees F
Ambient Temperature (Maximum)
104 Degrees F
Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 20 ft of Head (Maximum)
18 gpm
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
For Use With Potable Systems
No
Horsepower (Maximum)
1/3 hp
Flow Rate @ 15 ft of Head (Maximum)
20 gpm
Flow Rate (Minimum)
1 gpm
Intake Pipe Type
NPT
Discharge Rotation
90 Degrees Increments
Motor Speed (Maximum)
3,450 RPM
Best Efficiency Flow
10 gpm
Frequency
60 Hz
Flow Rate @ 40 ft of Head (Maximum)
2 gpm
Compatible Motor Frame
56J NEMA
Specific Gravity (Maximum)
1
Impeller Design
Closed
Current
6.8 or 3.4 A
Flow Rate @ 5 ft of Head (Maximum)
23.5 gpm
Best Efficiency Head
26 ft
Case Pressure (Maximum)
150 psi
Media Temperature (Maximum)
300 Degrees F
Flow Rate @ 1 ft of Head (Maximum)
24.5 gpm
Priming
Manual
Nameplate Voltage
115/230V AC
Flow Rate @ 10 ft of Head (Maximum)
22 gpm
Viscosity (Maximum)
260 SUS
Flow Rate @ 30 ft of Head (Maximum)
10 gpm
Flow Rate @ 25 ft of Head (Maximum)
11 gpm
Feet of Head (Maximum)
50 ft
Discharge Pipe Type
NPT
Shut Off Pressure (Maximum)
150 psi
Flow Rate (Maximum)
21 gpm

Description

Centrifugal Pump, Discharge Pipe Size 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 50 ft, Flow Rate (Maximum) 21 gpm, Horsepower (Maximum) 1/3 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 3/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 22 gpm
