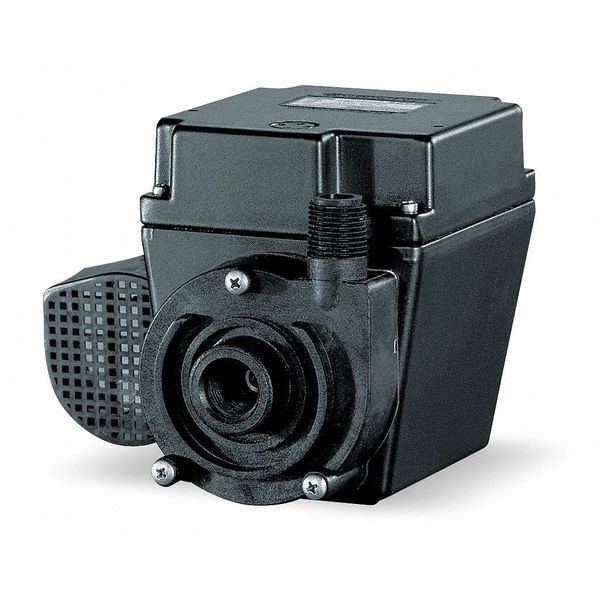

Shop LITTLE GIANT PUMP

Pump, 7 In. L, 4-1/2 In. W, 5-1/2 In. H

  • Mfr # 503375

  • Zoro # G0594657

product price:  $266.99
/ea
Free Shipping & Returns

Key Features

HP
1/15 hp
Voltage
115V
Full Load Amps
3.2 A
Cord Length
15 ft
Impeller Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
503375
Zoro #
G0594657
UPC #
010121039308
Country of Origin
Mexico

Dimensions

Cord Length
15 ft
Width
4 1/2 in
Length
7 in
Height
5 1/2 in
Overall Length
7 in
Overall Height
5.5 in
Overall Width
4.5 in
Compatible Intake Pipe Size
1/2 in
Compatible Discharge Pipe Size
1/2 in
Discharge Diameter
1/2 in
Inlet Diameter
1/2 in

Details

Item
Centrifugal Pump
HP
1/15 hp
Voltage
115V
Full Load Amps
3.2 A
Impeller Material
Nylon
Duty
Continuous
Max. Head
17.3 ft
Seal Material
Fluoroelastomer
Housing Material
Nylon
Overload Protection
yes
GPH of Water @ 5 Ft. of Head
337
GPH of Water @ 10 Ft. of Head
210
Hz
60
Inlet
1/2 in (F)NPT
GPH of Water @ 1 Ft. of Head
500
Outlet
1/2 in (M)NPT
Inlet Type
1/2 in (F)NPT
Features
In-line or Submersible
Amps
3.2 A
Standards
cCSAus Listed
Flow Rate @ 10 ft of Head (Maximum)
210 gph
Maximum Feet of Head
16.8 ft
Maximum Media Temperature
120 Degrees F
Duty Cycle
Continuous
Flow Rate @ 1 ft of Head (Maximum)
500 gph
Maximum Flow Rate
500 gph
Pump Housing Material
Aluminum
Horsepower
1/15 hp
Flow Rate @ 15 ft of Head (Maximum)
65 gph
Seal Type
Mechanical
Series
3E-12N-WG
Frequency
60 Hz
Minimum Flow Rate
0 gph
Motor Sealing
Oil-Filled
Compatible with Media Type
Oil
Flow Rate @ 5 ft of Head (Maximum)
337 gph
Feet of Head (Minimum)
0 ft
Discharge Type
NPT
Nameplate Voltage
115V AC
Intake Type
NPT
Pumping Application
Coolant Recirculating, Liquid Transfer
Chemical Compatibility
Oil
Number of Stages
1
Pump Design
Submersible
Media Temperature - Maximum
120 Degrees F
Feet of Head (Maximum)
17.3 ft
Ambient Temperature - Maximum
120 Degrees F
Case Pressure - Maximum
7.5 psi
Drive Coupling Type
No Coupling
Shaft Seal Type
Mechanical
Flow Rate (Maximum)
500 gph
Flow Rate (Minimum)
0 gph
Ambient Temperature - Minimum
30 Degrees F
Shaft Seal Material
Fluoroelastomer
Media Temperature - Minimum
30 Degrees F
Suction Lift (Maximum)
0 ft
Full Load Current
3.2A
Phase
Single

Description

Centrifugal Pump, Pump Housing Material Aluminum, Horsepower 1/15 hp, Nameplate Voltage 115V AC, Flow Rate @ 1 ft of Head (Maximum) 500 gph, Flow Rate @ 5 ft of Head (Maximum) 337 gph, Flow Rate @ 10 ft of Head (Maximum) 210 gph, Flow Rate @ 15 ft of Head (Maximum) 65 gph, Maximum Feet of Head 16.8 ft, Compatible Intake Pipe Size 1/2 in, Compatible Discharge Pipe Size 1/2 in, Intake Type NPT, Discharge Type NPT, Cord Length 15 ft, Motor Sealing Oil-Filled, Amps 3.2 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
