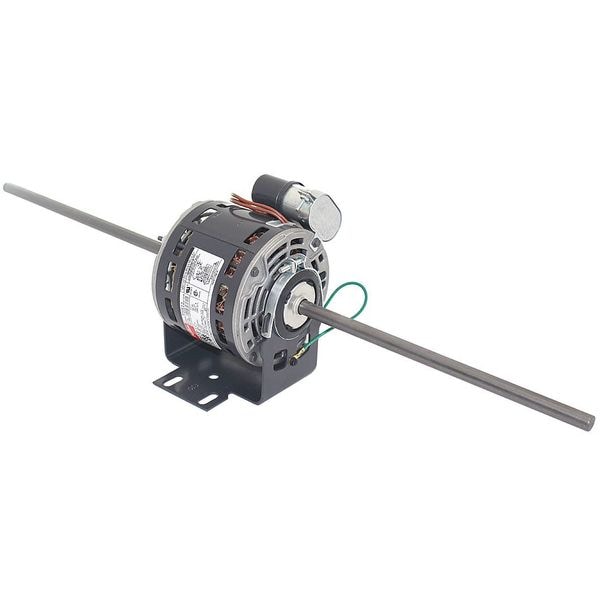

Room Air Cond Mtr, PSC, OAO, 1050 RPM

DAYTON| Zoro #: G1408802| Mfr #: 5WJA8

$106.04 /ea

This item ships free. Details.Standard ground shipping.
Details:
Bolt Circle Dia.: 4-11/16"
Item: Room Air Conditioner Motor
Shaft Length: 10-1/2"
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1408802 Mfr #: 5WJA8
Bolt Circle Dia.: 4-11/16"Item: Room Air Conditioner Motor
Shaft Length: 10-1/2"Motor Application: HVAC/R
Capacitor Required: YesLead Length: 59"
Duty: ContinuousMotor Thermal Protection: Auto
Motor Shaft Rotation: CW/CCWRPM Range: 1001-1100
Ring to Ring Center: 4-3/4"Standards: UL Recognized (E37403), CSA Certified (244617)
Motor Mounting Type: Cradle BaseLength Less Shaft: 5-5/32"
Body Dia.: 5"Includes: 5 MFD 370VAC Capacitor
Motor Design: Permanent Split CapacitorPhase: 1
Resilient Ring Dia.: 2-1/2"Motor Enclosure Design: Open Air-Over
Frame: 42YVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Full Load Amps: 1.4Hz: 60
Motor Bearings: SleeveHP: 1/15
Shaft Dia.: 1/2"No. of Speeds: 4
Ins. Class: BMotor Shaft Design: Flat
Stud Size: 8-32 UNCMax. Ambient Temp.: 60 Degrees C
Motor Service Factor: 1.00Motor Sub Application: Room Air Conditioner
Voltage: 115Nameplate RPM: 1050
Country of Origin (subject to change): China

Description

Room Air Conditioner Motor, Permanent Split Capacitor, Open Air-Over, Continuous, 1/15 HP, 1050 Nameplate RPM, Voltage 115, 42Y Frame, Service Factor 1.0, 60 Hz, Full Load Amps 1.2, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 60 Degrees C, Number of Speeds 4, CW/CCW Rotation, 1 Phase, Cradle Base Mounting, Sleeve Bearings, Body Dia. 5 In., Length Less Shaft 4-11/16 In., Shaft Type Flat, Shaft Dia. 1/2 In., Shaft Length 10-1/2 In. Ea., Stud Pattern 2-5/16 x 4 In.
