Shop CENTURY

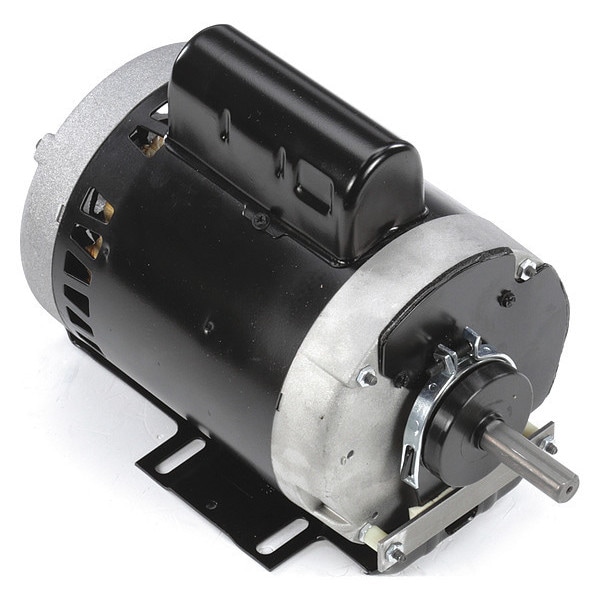

Direct Drive Motor, 3/4 hp

  • Mfr # C662

  • Zoro # G2033641

product price:  $620.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
3/4 hp
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C662
Zoro #
G2033641
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 5/16 in
Length Less Shaft
10 1/4 in
Overall Length
12 13/16 in
Body Dia.
6.5 in
Body Diameter
6.5 in
Frame Size
56Y
Shaft Diameter
5/8 in
Wire Rope Length
12 13/16 in

Details

Motor Design
Permanent Split Capacitor
HP
3/4 hp
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Replacement For
047-099
Hz
60
OEM Replacement Brand
Kramer Trenton
Number of Shafts
1
Item
Direct Drive Motor
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Standards
CSA, UL
Full Load Amps
4.3 to 4.2/2.1 A
Motor Application
OEM Replacement
Ins. Class
B
Motor Bearings
Ball
Motor Sub Application
Direct Drive Fan/Blower
Nameplate RPM
1,075
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Application
Fans and Blowers
Capacitor Required
Capacitor Included
Motor Service Factor
1
Phase
Single
Motor Shaft Design
Flat
Usable @ 200V
Not Usable at 200V
Extended Thru-Bolts
No
Weight
32 lb
Duty Cycle
Continuous
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Number of Speeds
1
Sub Application
Fan/Blower
Compatible Brand
Kramer Trenton
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Bearing Type
Ball
Full Load Current @ 60 Hz
4.3-4.2/2.1 A
Duty
Continuous
Shaft Design
Flat
Insulation Class
B

Description

Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.3-4.2/2.1 A, 56Y Frame, OEM Replacement Brand Kramer Trenton, Replacement For 047-099, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
