  9. Rotary Gear Pump Head, 1 In., 3 HP

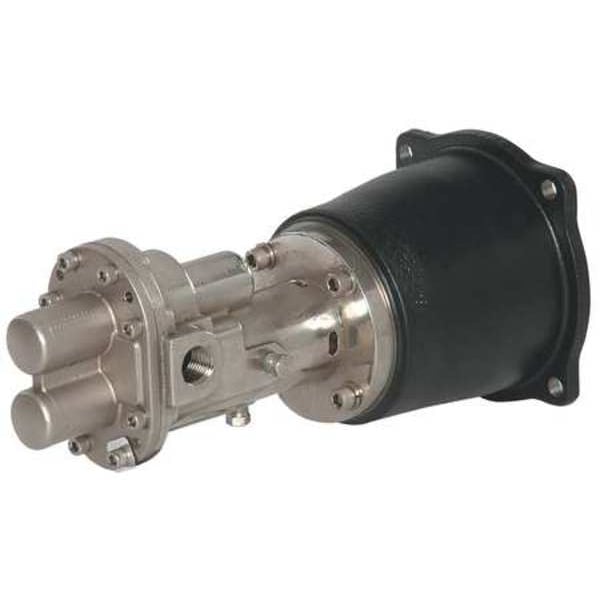

Dayton Rotary Gear Pump Head, 1 In., 3 HP 4KHN9 - main

Rotary Gear Pump Head, 1 In., 3 HP

  • Mfr # 4KHN9

  • Zoro # G0532576

product price: $1,304.99
/ea
Free Shipping & Returns

Key Features

Port Size
1 in
Shaft Dia.
0.787 in
Pump Body Material
316 Stainless Steel
GPM @ 25 PSI
24.7 gpm
Gear
Fortron PPS Spur
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4KHN9
Zoro #
G0532576
UPC #
190735328460
Country of Origin
India

Dimensions

Port Size
1 in
Shaft Dia.
0.787 in
Height
8 3/4 in
Width
8 3/4 in
Length
14 1/2 in
Overall Height
8.8 in
Overall Length
14.5 in
Overall Width
8.8 in
Shaft Outer Diameter
3/4 in
Connection Size
1 in

Details

Item
Rotary Gear Pump Head
Pump Body Material
316 Stainless Steel
GPM @ 25 PSI
24.7 gpm
Gear
Fortron PPS Spur
HP @ Free Flow
1.5 hp
GPM @ 125 PSI
23.3 gpm
Temp. Range
32 Degrees to 280 Degrees F
HP @ 50 PSI
2 hp
Recommended Motor HP
3 hp
HP @ 100 PSI
3 hp
HP @ 125 PSI
3 hp
HP @ Free Flow @ 1725 RPM
1.5 hp
Suction Lift @ 1725 RPM
19.5 ft
Pump RPM
1,725 RPM
Suction Lift
19.5 ft
GPM @ Freeflow @ 1725 RPM
24.8 gpm
Shaft Material
316 Stainless Steel
GPM @ 100 PSI
23.9 gpm
O-Ring Material
Viton
Design
Close Coupled
Relief Valve
Without
GPM @ 125 PSI @ 1725 RPM
23.3 gpm
GPM @ 75 PSI
24.3 gpm
Max. Viscosity
550 SUS
GPM @ 50 PSI
24.5 gpm
Motor Frame
182TC/184TC
HP @ 75 PSI
2 hp
Seal
Mechanical Seal Carbon/Ceramic with Viton
Max. Pressure
125 psi
HP @ 125 PSI @ 1725 RPM
3 hp
GPM @ Freeflow
24.8 gpm
HP @ 25 PSI
1.5 hp
Duty Rating
Intermediate
Body Material
316 Stainless Steel
Gear Material
Fortron PPS
Connection Type
NPT
Operating Temperature - Maximum
280 Degrees F
Seal Type
Mechanical
Operating Pressure - Maximum
125 psi
Flow Rate @ 125 psi
23.3 gpm
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Flow Rate @ 100 psi
23.9 gpm
Operating Temperature - Minimum
32 Degrees F
Motor Mounting Type
Close Coupled
Flow Rate @ 75 psi
24.3 gpm
Compatible Motor Frame
182TC/184TC
Flow Rate @ 50 psi
24.5 gpm
Viscosity - Maximum
550 SUS
Suction Lift - Maximum
19.5 ft
Gear Design
Spur
Flow Rate @ 25 psi
24.7 gpm
Required Horsepower
3 hp

Description

Rotary Gear Pump Head, Body Material 316 Stainless Steel, Compatible Motor Frame 182TC/184TC, Viscosity - Maximum 550 SUS, Suction Lift - Maximum 19.5 ft, Operating Pressure - Maximum 125 psi, Operating Temperature - Maximum 280 Degrees F, Operating Temperature - Minimum 32 Degrees F, Required Horsepower 3 hp, Connection Size 1 in, Connection Type NPT, Shaft Outer Diameter 3/4 in, Flow Rate @ 100 psi 23.9 gpm, Seal Type Mechanical, Shaft Length Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
