Shop SANDPIPER

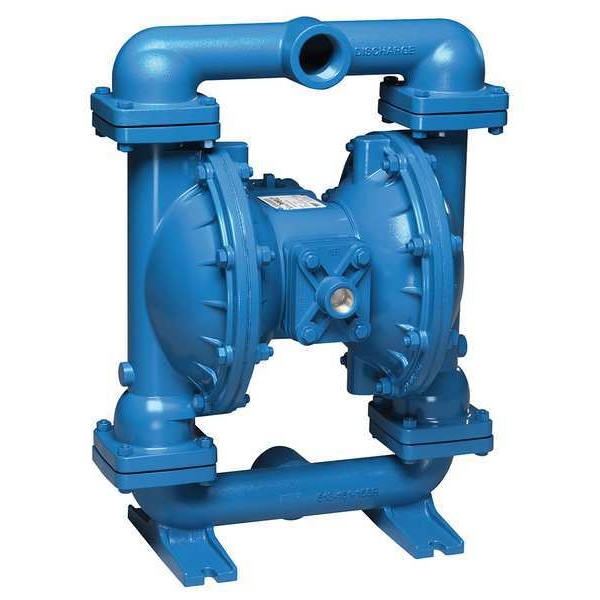

Double Diaphragm Pump, Cast iron, Air Operated, Santoprene, 106 GPM

  • Mfr # S15B1I1WANS000.

  • Zoro # G5378055

product price:  $3,171.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Cast-Iron
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S15B1I1WANS000.
Zoro #
G5378055
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1 1/2 in
Manufacturers Warranty Length
5 yr
Overall Length
12.4 in
Overall Height
24.8 in
Overall Width
11.2 in
Solid Diameter (Maximum)
0.25 in
Media Discharge Connection Size
1 1/2 in
Media Intake Connection Size
1 1/2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Cast-Iron
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
Polyethylene
Diaphragm Material
Santoprene
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Dry
22 ft
Pump Operation Type
Air
Agency Compliance
ATEX, CE, EAC
Self-Priming Wet
22 ft
Inlet/Outlet
1 1/2 in
For Use With
Intermittent/On-Demand, Moderately Abrasive Fluids, and Suspended Solids
Standards
ABS Type Approved, CE Marked, EAC Certified, ISO
Flow Rate @ 100 psi
106 gpm
Flow Rate (Maximum)
106 gpm
Series Family
S15
Air Intake Pressure (Maximum)
125 psi
Flow Rate @ 80 psi
98 gpm
Manifold Connection Type
NPT
Media Intake Location
Bottom
Flow Rate @ 40 psi
74.3 gpm
Wetted Housing Material
Cast Iron
Media Discharge Connection Type
NPT
For Use With Potable Systems
No
Flow Rate @ 60 psi
94 gpm
Feet of Head (Maximum)
289 ft
Media Discharge Location
Top
Chemical Compatibility
Water
Priming
Self-Priming
Media Intake Connection Type
NPT
Flow Rate @ 20 psi
53.5 gpm
Manifold Connection Standard
NPT
Media Intake Port Configuration
Center Horizontal
Wetted Body Material
Cast Iron
Series
S15
Material Conductivity
Non-Conductive
Center Section Material
Aluminum
Includes Clean In Place Technology
No Clean In Place Included
Mounting Hardware Material
Steel
Diaphragm Reinforcement
Not Reinforced
Media Discharge Port Configuration
Center Horizontal
Displacement Per Stroke
0.41 gal
Fluid Chamber Assembly Type
Bolted
Diaphragm Base Material
Santoprene
Manifold Port Connection Type
Single Port
Includes Solenoid
No Solenoid Included

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 1 1/2 in, Air Intake Connection Type NPT, Check Seat Material Polyethylene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 106 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type NPT
