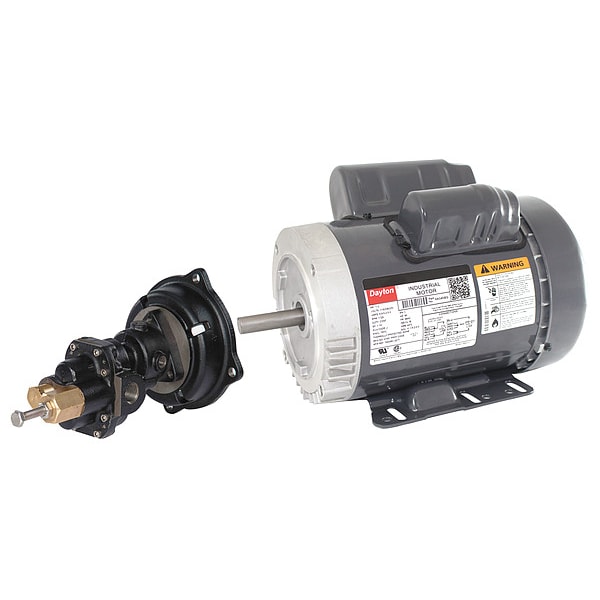

Dayton Rotary Pump, 1Phase, 125psi, Cst Iron, 1HP 41TK05 - main

Rotary Pump, 1Phase, 125psi, Cst Iron, 1HP

  • Mfr # 41TK05

  • Zoro # G2576843

product price: $843.99
/ea
Free Shipping & Returns

Key Features

Pump Type
Close Coupled
HP
1 hp
Voltage
115/230
GPM Max.
4.8 gpm
Seal
Viton Mechanical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
41TK05
Zoro #
G2576843
UPC #
00194484255497
Country of Origin
Multiple

Dimensions

Port Size (In.)
1/4 in
Height (In.)
20.375 in
Length (In.)
8.75 in
Width (In.)
12.125 in
Overall Length
8.8 in
Overall Width
12.1 in
Overall Height
20.4 in
Manufacturer Warranty Length
1 yr
Media Intake Connection Size
1/4 in

Details

Item
Rotary Gear Pump
Pump Type
Close Coupled
HP
1 hp
Voltage
115/230
GPM Max.
4.8 gpm
Seal
Viton Mechanical
Relief Valve
Yes
GPM @ 60 PSI
4.6 gpm
Bushing
Carbon Graphite
O-Ring
Viton
GPM @ 100 PSI
4.4 gpm
Max. Pressure (PSI)
125 psi
GPM @ 40 PSI
4.7 gpm
Amps
10/5
Suction Lift (Ft.)
3.5 ft
Amps AC
10/5
Motor Frame
56HC
Max. RPM
1,725 RPM
Shaft Material
Steel
Temp. Range
32 Degrees to 280 Degrees F
Gear Material
Steel
Motor Enclosure
Totally Enclosed Fan Cooled
Max. Viscosity (SSU)
500 SUS
Max. Temp. (F)
280 Degrees F
GPM @ 20 PSI
4.8 gpm
Phase
Single
GPM @ Freeflow
4.8 gpm
Body Material
Cast Iron
Includes
6K045, 4KHC5
Assembled/Unassembled
Unassembled
Motor Included
6K045
Pump Head Included
4KHC5
O-Ring Material
Viton
Motor Mounting Type
Close Coupled
Flow Rate @ 60 psi
4.6 gpm
Seal Type
Mechanical
Flow Rate @ 20 psi
4.8 gpm
Gear Design
Spur
Operating Temperature - Maximum
280 Degrees F
Operating Temperature - Minimum
32 Degrees F
Nameplate Voltage
115/230V AC
Flow Rate @ 100 psi
4.4 gpm
Bushing Material
Carbon Graphite
Suction Lift -Maximum
3.5 ft
Operating Pressure - Maximum
125 psi
Compatible Motor Frame
56HC
Motor Speed - Maximum
1,725 RPM
Flow Rate - Maximum
4.8 gpm
Viscosity - Maximum
500 SUS
Seal Material
Viton
Flow Rate @ 40 psi
4.7 gpm
Horsepower - Maximum
1 hp

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Single, Nameplate Voltage 115/230V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 1/4 in, Gear Design Spur, Gear Material Steel, Suction Lift -Maximum 3.5 ft, Flow Rate - Maximum 4.8 gpm, Seal Type Mechanical, Seal Material Viton, Body Material Cast Iron
