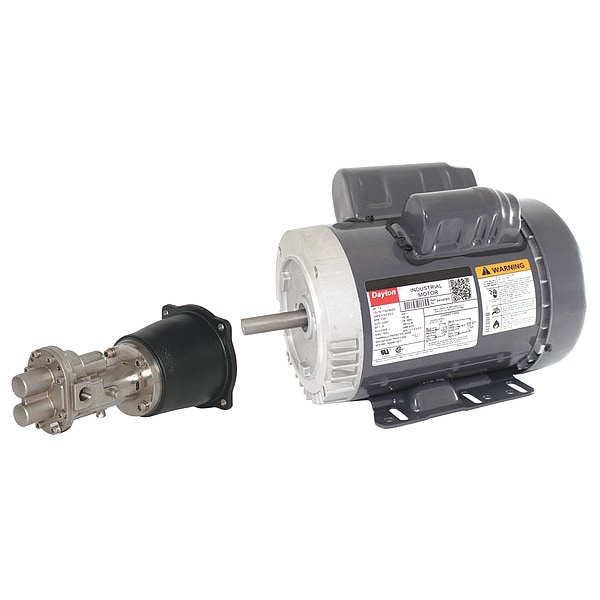

Rotary Pump, 1Phase, 125psi, 1HP

Mfr # 41TK07
Zoro # G2576861

$1,370.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Pump Type Close Coupled
HP 1 hp
Voltage 115/230
Max. Temp. (F) 280 Degrees F
GPM @ 100 PSI 4.4 gpm

See all product information

Brand Dayton
MFR # 41TK07
Zoro # G2576861
UPC #
00194484255510
Country of Origin Multiple
Category Rotary Pumps

Dimensions

Length (In.)	22.75 in
Height (In.)	8.75 in
Width (In.)	11 in
Port Size (In.)	3/8 in
Overall Height	8.8 in
Overall Length	22.8 in
Overall Width	11 in
Manufacturer Warranty Length	1 yr
Media Intake Connection Size	3/8 in

Details

Item	Rotary Gear Pump
Pump Type	Close Coupled
HP	1 hp
Voltage	115/230
Max. Temp. (F)	280 Degrees F
GPM @ 100 PSI	4.4 gpm
GPM Max.	4.8 gpm
GPM @ 60 PSI	4 gpm
Amps AC	10/5
Max. Viscosity (SSU)	500 SUS
Suction Lift (Ft.)	3.5 ft
O-Ring	Viton
Amps	10/5
Motor Enclosure	Totally Enclosed Fan Cooled
GPM @ Freeflow	4.8 gpm
GPM @ 40 PSI	4.2 gpm
Gear Material	Fortron PPS
Relief Valve	No
Body Material	316 Stainless Steel
Seal	Type 21 Mechanical With Stainless Steel, Viton
Phase	Single
Max. Pressure (PSI)	125 psi
Motor Frame	56HC
Shaft Material	316 Stainless Steel
Bushing	Carbon Graphite
GPM @ 20 PSI	4.5 gpm
Max. RPM	1,725 RPM
Temp. Range	32 Degrees to 280 Degrees F
Includes	6K045, 4KHN7
Assembled/Unassembled	Unassembled
Motor Included	6K045
Pump Head Included	4KHN7
O-Ring Material	Viton
Operating Temperature - Maximum	280 Degrees F
Nameplate Voltage	115/230V AC
Suction Lift -Maximum	3.5 ft
Viscosity - Maximum	500 SUS
Operating Temperature - Minimum	32 Degrees F
Seal Material	Viton
Seal Type	Mechanical
Compatible Motor Frame	56HC
Horsepower - Maximum	1 hp
Motor Speed - Maximum	1,725 RPM
Flow Rate @ 60 psi	4 gpm
Operating Pressure - Maximum	125 psi
Flow Rate @ 20 psi	4.5 gpm
Flow Rate @ 40 psi	4.2 gpm
Gear Design	Spur
Flow Rate - Maximum	4.8 gpm
Motor Mounting Type	Close Coupled
Bushing Material	Carbon Graphite
Flow Rate @ 100 psi	4.4 gpm

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Single, Nameplate Voltage 115/230V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 3/8 in, Gear Design Spur, Gear Material Fortron PPS, Suction Lift -Maximum 3.5 ft, Flow Rate - Maximum 4.8 gpm, Seal Type Mechanical, Seal Material Viton
