Dayton

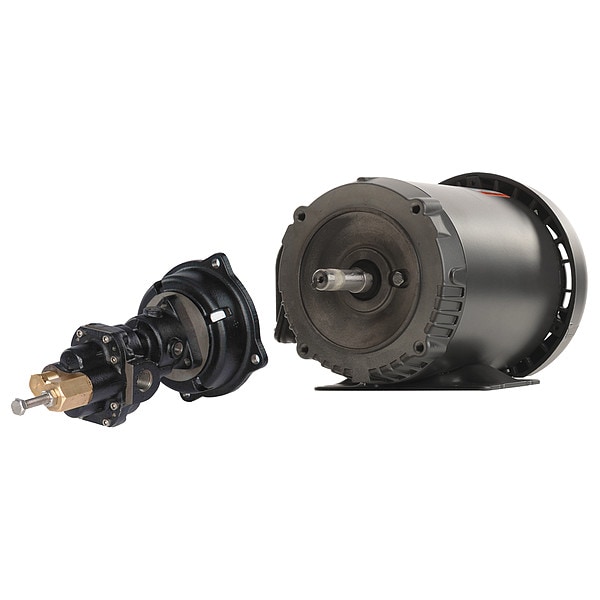

Rotary Pump, 3Phase, 125psi, Cst Iron, 1HP

product price: $938.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Type Close Coupled
  • HP 1 hp
  • Voltage 230/460
  • Amps 3.3/1.6
  • Suction Lift (Ft.) 3.5 ft
See all product information

Product Information

  • Brand Dayton
  • MFR # 41TK13
  • Zoro # G2576889
  • UPC #
    00194484255572
  • Country of Origin Multiple
  • Category Rotary Pumps

Dimensions

Width (In.) 12.125 in
Height (In.) 20.375 in
Length (In.) 8.75 in
Port Size (In.) 1/4 in
Overall Length 8.8 in
Overall Height 20.4 in
Overall Width 12.1 in
Media Intake Connection Size 1/4 in
Manufacturer Warranty Length 1 yr

Details

Item Rotary Gear Pump
Pump Type Close Coupled
HP 1 hp
Voltage 230/460
Amps 3.3/1.6
Suction Lift (Ft.) 3.5 ft
Body Material Cast Iron
Temp. Range 32 Degrees to 280 Degrees F
GPM @ 40 PSI 4.7 gpm
Max. RPM 1,725 RPM
Motor Frame 56C
GPM @ 100 PSI 4.4 gpm
GPM @ Freeflow 4.8 gpm
Shaft Material Steel
Motor Enclosure Totally Enclosed Fan Cooled
Max. Viscosity (SSU) 500 SUS
Phase Three
Gear Material Steel
Relief Valve Yes
Amps AC 3.3/1.6
GPM @ 60 PSI 4.6 gpm
Seal Viton Mechanical
GPM Max. 4.8 gpm
O-Ring Viton
Max. Temp. (F) 280 Degrees F
Max. Pressure (PSI) 125 psi
GPM @ 20 PSI 4.8 gpm
Bushing Carbon Graphite
Includes 36VF82, 4KHC5
Assembled/Unassembled Unassembled
Pump Head Included 4KHC5
Motor Included 36VF82
O-Ring Material Viton
Horsepower - Maximum 1 hp
Viscosity - Maximum 500 SUS
Gear Design Spur
Operating Pressure - Maximum 125 psi
Motor Speed - Maximum 1,725 RPM
Flow Rate - Maximum 4.8 gpm
Flow Rate @ 40 psi 4.7 gpm
Flow Rate @ 60 psi 4.6 gpm
Operating Temperature - Minimum 32 Degrees F
Bushing Material Carbon Graphite
Nameplate Voltage 230/460V AC
Flow Rate @ 20 psi 4.8 gpm
Seal Material Viton
Motor Mounting Type Close Coupled
Flow Rate @ 100 psi 4.4 gpm
Compatible Motor Frame 56C
Seal Type Mechanical
Operating Temperature - Maximum 280 Degrees F
Suction Lift -Maximum 3.5 ft

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Three, Nameplate Voltage 230/460V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 1/4 in, Gear Design Spur, Gear Material Steel, Suction Lift -Maximum 3.5 ft, Flow Rate - Maximum 4.8 gpm, Seal Type Mechanical, Seal Material Viton, Body Material Cast Iron
