  9. Rotary Pump, Close, 125psi, 1-1/2HP
Shop All Rotary Pumps
Dayton

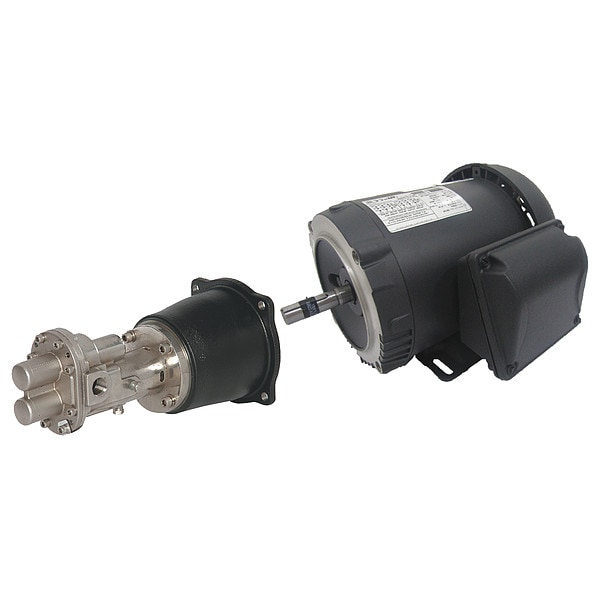

Rotary Pump, Close, 125psi, 1-1/2HP

product price: $1,450.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Type Close Coupled
  • HP 1 1/2 hp
  • Voltage 230/460
  • Suction Lift (Ft.) 12.3 ft
  • GPM Max. 10.8 gpm
See all product information

Product Information

  • Brand Dayton
  • MFR # 41TK20
  • Zoro # G2577071
  • UPC #
    00194484255640
  • Country of Origin Multiple
  • Category Rotary Pumps

Dimensions

Port Size (In.) 1/2 in
Height (In.) 8.25 in
Width (In.) 11 in
Length (In.) 22.5 in
Overall Width 11 in
Overall Height 8.3 in
Overall Length 22.5 in
Media Intake Connection Size 1/2 in
Manufacturer Warranty Length 1 yr

Details

Item Rotary Gear Pump
Pump Type Close Coupled
HP 1 1/2 hp
Voltage 230/460
Suction Lift (Ft.) 12.3 ft
GPM Max. 10.8 gpm
Max. Viscosity (SSU) 500 SUS
O-Ring Viton
GPM @ 40 PSI 9.5 gpm
Gear Material Fortron PPS
Max. Pressure (PSI) 125 psi
Body Material 316 Stainless Steel
GPM @ Freeflow 10.8 gpm
GPM @ 20 PSI 10.2 gpm
Seal Type 21 Mechanical With Stainless Steel, Viton
Bushing Carbon Graphite
Motor Enclosure Totally Enclosed Fan Cooled
Motor Frame 56C
Max. Temp. (F) 280 Degrees F
Temp. Range 32 Degrees to 280 Degrees F
Relief Valve No
Phase Three
Amps 4.4/2.2
GPM @ 100 PSI 10.2 gpm
GPM @ 60 PSI 9.1 gpm
Shaft Material 316 Stainless Steel
Max. RPM 1,725 RPM
Amps AC 4.4/2.2
Includes 36VF88, 4KHN8
Assembled/Unassembled Unassembled
Motor Included 36VF88
Pump Head Included 4KHN8
O-Ring Material Viton
Flow Rate @ 60 psi 9.1 gpm
Nameplate Voltage 230/460V AC
Gear Design Spur
Flow Rate - Maximum 10.8 gpm
Bushing Material Carbon Graphite
Viscosity - Maximum 500 SUS
Seal Type Mechanical
Operating Temperature - Minimum 32 Degrees F
Operating Temperature - Maximum 280 Degrees F
Compatible Motor Frame 56C
Flow Rate @ 100 psi 10.2 gpm
Suction Lift -Maximum 12.3 ft
Motor Mounting Type Close Coupled
Horsepower - Maximum 1 1/2 hp
Seal Material Viton
Flow Rate @ 20 psi 10.2 gpm
Operating Pressure - Maximum 125 psi
Flow Rate @ 40 psi 9.5 gpm
Motor Speed - Maximum 1,725 RPM

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Three, Nameplate Voltage 230/460V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 1/2 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 1/2 in, Gear Design Spur, Gear Material Fortron PPS, Suction Lift -Maximum 12.3 ft, Flow Rate - Maximum 10.8 gpm, Seal Type Mechanical, Seal Material Viton
