Dayton

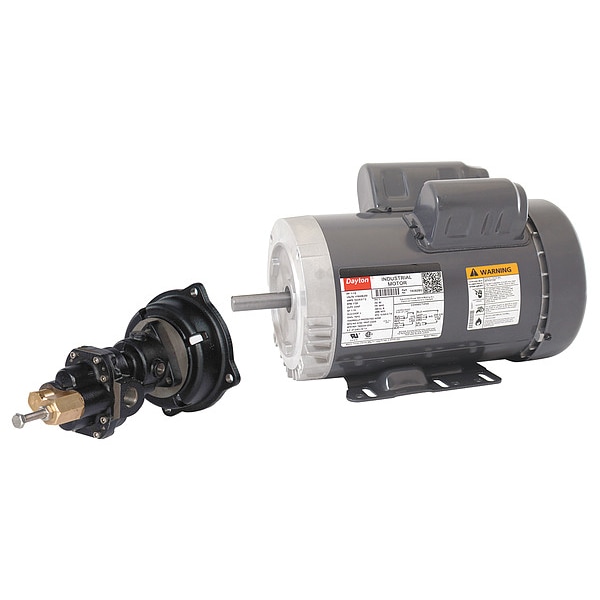

Rotary Pump, Close, 125psi, 1-1/2HP

product price: $1,009.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Type Close Coupled
  • HP 1 1/2 hp
  • Voltage 115/230
  • Amps AC 14.4/7.2
  • Temp. Range 32 Degrees to 280 Degrees F
See all product information

Product Information

  • Brand Dayton
  • MFR # 41TK09
  • Zoro # G2576913
  • UPC #
    00194484255534
  • Country of Origin Multiple
  • Category Rotary Pumps

Dimensions

Width (In.) 12.8 in
Height (In.) 20.5 in
Port Size (In.) 3/8 in
Length (In.) 8.75 in
Overall Height 20.5 in
Overall Length 8.8 in
Overall Width 12.8 in
Manufacturer Warranty Length 1 yr
Media Intake Connection Size 3/8 in

Details

Item Rotary Gear Pump
Pump Type Close Coupled
HP 1 1/2 hp
Voltage 115/230
Amps AC 14.4/7.2
Temp. Range 32 Degrees to 280 Degrees F
GPM @ Freeflow 7 gpm
GPM @ 60 PSI 6.7 gpm
O-Ring Viton
Max. Temp. (F) 280 Degrees F
Bushing Carbon Graphite
Suction Lift (Ft.) 7.9 ft
Amps 14.4/7.2
GPM @ 40 PSI 6.8 gpm
Max. RPM 1,725 RPM
Gear Material Steel
Phase Single
Max. Pressure (PSI) 125 psi
Max. Viscosity (SSU) 500 SUS
Body Material Cast Iron
GPM @ 100 PSI 6.5 gpm
Seal Viton Mechanical
Shaft Material Steel
Motor Frame 56HC
GPM Max. 7.9 gpm
Relief Valve Yes
GPM @ 20 PSI 6.9 gpm
Motor Enclosure Totally Enclosed Fan Cooled
Includes 1K082, 4KHC6
Assembled/Unassembled Unassembled
Motor Included 1K082
Pump Head Included 4KHC6
O-Ring Material Viton
Compatible Motor Frame 56HC
Suction Lift -Maximum 7.9 ft
Seal Material Viton
Bushing Material Carbon Graphite
Operating Temperature - Minimum 32 Degrees F
Flow Rate - Maximum 7.9 gpm
Nameplate Voltage 115/230V AC
Horsepower - Maximum 1 1/2 hp
Seal Type Mechanical
Motor Mounting Type Close Coupled
Flow Rate @ 40 psi 6.8 gpm
Flow Rate @ 60 psi 6.7 gpm
Viscosity - Maximum 500 SUS
Flow Rate @ 20 psi 6.9 gpm
Gear Design Spur
Operating Temperature - Maximum 280 Degrees F
Operating Pressure - Maximum 125 psi
Flow Rate @ 100 psi 6.5 gpm
Motor Speed - Maximum 1,725 RPM

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Single, Nameplate Voltage 115/230V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 1/2 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 3/8 in, Gear Design Spur, Gear Material Steel, Suction Lift -Maximum 7.9 ft, Flow Rate - Maximum 7.9 gpm, Seal Type Mechanical, Seal Material Viton, Body Material Cast Iron
