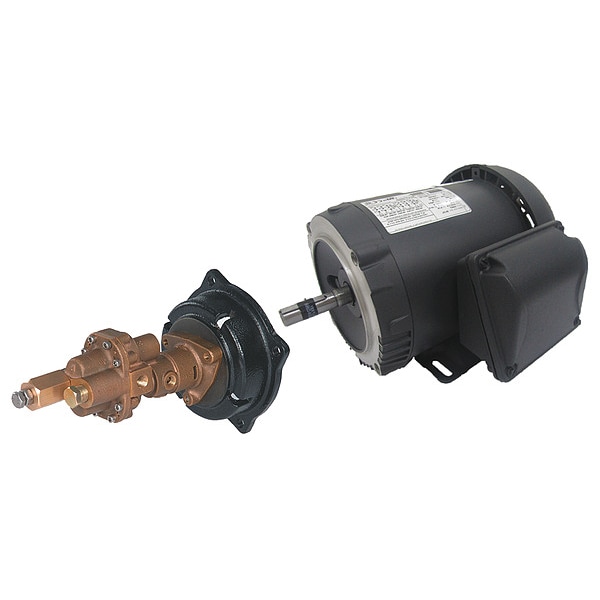

Rotary Pump, Close, 125psi, 1-1/2HP

Mfr # 41TK19
Zoro # G2577038

$1,130.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Pump Type Close Coupled
HP 1 1/2 hp
Voltage 230/460
Body Material Bronze
Height (In.) 23.25 in

See all product information

Brand Dayton
MFR # 41TK19
Zoro # G2577038
UPC #
00194484255633
Country of Origin Multiple
Category Rotary Pumps

Dimensions

Height (In.)	23.25 in
Length (In.)	8.25 in
Width (In.)	12.8 in
Port Size (In.)	1/2 in
Overall Height	23.3 in
Overall Width	12.8 in
Overall Length	8.3 in
Manufacturer Warranty Length	1 yr
Media Intake Connection Size	1/2 in

Details

Item	Rotary Gear Pump
Pump Type	Close Coupled
HP	1 1/2 hp
Voltage	230/460
Body Material	Bronze
Amps	4.4/2.2
Amps AC	4.4/2.2
Max. Pressure (PSI)	125 psi
Max. Viscosity (SSU)	500 SUS
Motor Enclosure	Totally Enclosed Fan Cooled
O-Ring	Buna N
Temp. Range	-20 Degrees to 210 Degrees F
Max. RPM	1,725 RPM
GPM Max.	10.8 gpm
GPM @ 40 PSI	10.6 gpm
Relief Valve	Yes
GPM @ 20 PSI	10.7 gpm
GPM @ 60 PSI	10.5 gpm
Suction Lift (Ft.)	12.3 ft
Gear Material	Fortron PPS
Max. Temp. (F)	280 Degrees F
Seal	Buna N Mechanical
GPM @ Freeflow	10.8 gpm
Shaft Material	Stainless Steel
Phase	Three
Motor Frame	56C
GPM @ 100 PSI	10.2 gpm
Bushing	Carbon Graphite
Includes	36VF88, 4KHC2
Assembled/Unassembled	Unassembled
Motor Included	36VF88
Pump Head Included	4KHC2
O-Ring Material	Buna-N
Flow Rate @ 40 psi	10.6 gpm
Gear Design	Spur
Seal Material	Buna-N
Operating Pressure - Maximum	125 psi
Seal Type	Mechanical
Bushing Material	Carbon Graphite
Flow Rate @ 100 psi	10.2 gpm
Flow Rate @ 60 psi	10.5 gpm
Nameplate Voltage	230/460V AC
Viscosity - Maximum	500 SUS
Motor Mounting Type	Close Coupled
Flow Rate - Maximum	10.8 gpm
Horsepower - Maximum	1 1/2 hp
Flow Rate @ 20 psi	10.7 gpm
Suction Lift -Maximum	12.3 ft
Motor Speed - Maximum	1,725 RPM
Operating Temperature - Maximum	210 Degrees F
Compatible Motor Frame	56C
Operating Temperature - Minimum	-20 Degrees F

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Three, Nameplate Voltage 230/460V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 1/2 hp, Operating Temperature - Minimum -20 Degrees F, Operating Temperature - Maximum 210 Degrees F, Media Intake Connection Size 1/2 in, Gear Design Spur, Gear Material Fortron PPS, Suction Lift -Maximum 12.3 ft, Flow Rate - Maximum 10.8 gpm, Seal Type Mechanical, Seal Material Buna-N

Replacement Parts

Dayton 3-Phase General Purpose Motor, 1 1/2 HP, 56C Frame, 230/460V AC Voltage, 1,750 Nameplate RPM

product price: $517.99
/ea
Dayton Rotary Gear Pump Head, 1/2 In., 3/4 HP

original price: $703.82

4% off

new price: $668.99
/ea
