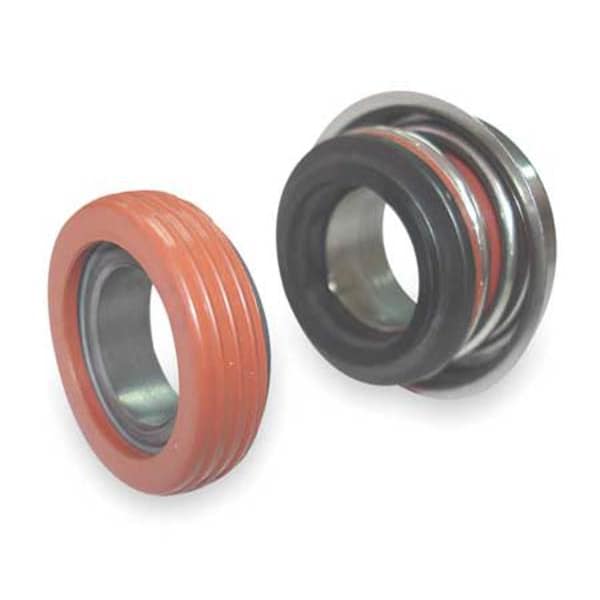

Shaft Seal, 5/8 In, Viton, Silicon Carbide, Material Content Code: VXRXR
Mfr # 3ACF7
Zoro # G2313674
product price:Â
$
61.59
/ea
Key Features
Shaft Size (In.)
5/8 in
Nominal Working Length (In.)
1 in
Seat Bore
1.25 in
Seal Material
Silicon Carbide, Viton
Max. Temp. (F)
200 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3ACF7
- Zoro #
- G2313674
- UPC #
- 190735279403
- Country of Origin
- India
- Seat Bore
- 1.25 in
- Seal Material
- Silicon Carbide, Viton
- Max. Temp. (F)
- 200 Degrees F
- Min. Temp. (F)
- -40 Degrees F
- Material Content Code
- VXRXR
- Seal Bore (In.)
- 5/8 in
- Item
- Replacement Pump Shaft Seal
- Ring Material
- Silicon Carbide
- Gasket Material
- Silicon Carbide, FKM
- Maximum Temperature
- 200 Degrees F
- Minimum Temperature
- -40 Degrees F
- Seal Arrangement
- Single
- Temperature (Maximum)
- 200 Degrees F
- Spring Material
- 316 Stainless Steel
- Compatible with Pump Type
- Centrifugal Pump
- Temperature (Minimum)
- -40 Degrees F
- Chemical Compatibility
- Non-Flammable Liquids, Water
- Bellows Material
- FKM
- Product Type
- Component Mechanical Seal
- Shaft Seal Type
- Mechanical
- Shaft Speed - Maximum
- 3,450 RPM
- Spring Configuration
- Single Spring
- Compatible with Series
- Dayton
Description
Replacement Pump Shaft Seal, For Shaft Diameter 5/8 in, Compatible with Pump Type Centrifugal Pump, Compatible with Series Dayton, Gasket Material Silicon Carbide, FKM, Includes Not Applicable, Replaces Grainger Seal Not Applicable, Ring Material Silicon Carbide, Seal Type Designation Not Applicable, Shaft Seal Type Mechanical, Spring Material 316 Stainless Steel, Standards Not Applicable, Maximum Temperature 200 Degrees F, Minimum Temperature -40 Degrees F, Working Length 1 in
