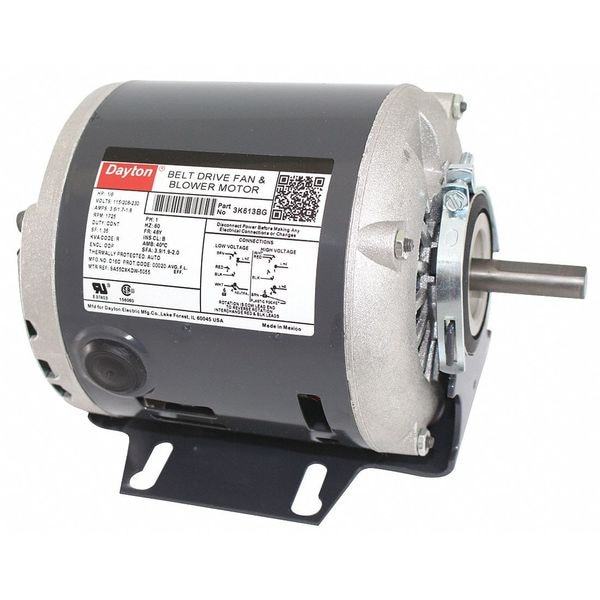

Dayton Split-Phase Belt Drive Motor, 1/6 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM 3K613 - main

Split-Phase Belt Drive Motor, 1/6 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 3K613

  • Zoro # G2793786

product price:  $278.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/6
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3K613
Zoro #
G2793786
UPC #
190735290255
Country of Origin
Multiple

Dimensions

Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Length Less Shaft
6 15/16 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
1 1/2 in
Overall Length
8 7/16 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/6
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/208-230V AC
Frame
48
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.35
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Ring to Ring Center
6 3/8 in
Duty
Continuous
Motor Frame Material
Rolled Steel
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Full Load Amps
3.6/1.7-1.8 A
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Standards
CSA Certified (258501), UL Component Recognized (E37403)
Motor Bearings
Ball
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
51 %
Frame Material
Rolled steel
Duty Cycle
Continuous

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 3.6/1.7-1.8 A Full Load Amps, 48 Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Shaft Dia. 1/2 in
