Century

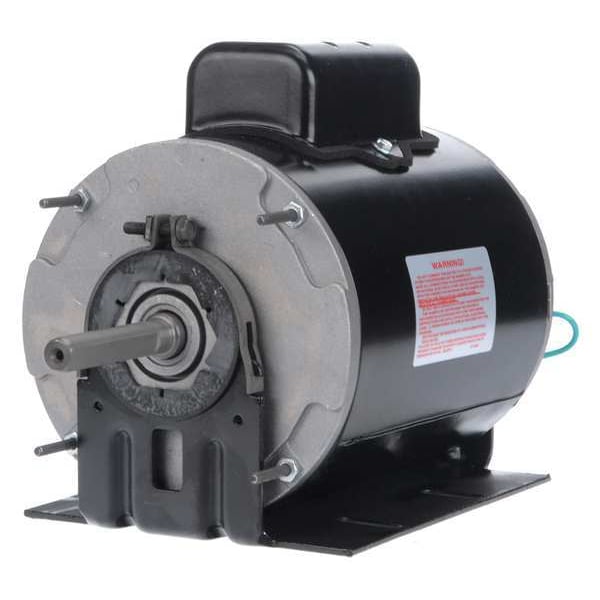

Motor, PSC, 1/2 HP, 1100,115/230V, 48Z, TEAO

product price: $253.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Thermal Protection Auto
  • Motor Application Farm Duty
  • Resilient Ring Dia. 2 1/2 in
  • Bolt Circle Dia. 5 3/16 in
  • Standards CSA Certified, UL Recognized
See all product information

Product Information

Dimensions

Resilient Ring Dia. 2 1/2 in
Bolt Circle Dia. 5 3/16 in
Shaft Length 3 1/8 in
Stud Size #8-32
Length Less Shaft 8 3/8 in
Mounting Stud Length 7/8 in
Manufacturers Warranty Length 1 yr
Body Dia. 5 5/8 in
Overall Length 11 1/16 in
Shaft Dia. 1/2 in

Details

Motor Thermal Protection Auto
Motor Application Farm Duty
Standards CSA Certified, UL Recognized
Motor Enclosure Design Totally Enclosed
Nameplate RPM 1,100
Ring to Ring Center 7 7/8 in
Motor Bearings Ball
Full Load Amps 6.5/3.3 A
Motor Design Permanent Split Capacitor
Mounting Stud Pattern 3-5/8 in x 3-5/8 in
Motor Mounting Type Cradle Base
Voltage Compatibility 115/200-230V AC, 115/208-230, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
HP 1/2
Hz 60 Hz
Item Direct Drive Fan Motor
Ins. Class B
Phase Single
Duty Continuous
Capacitor Required Included
Max. Ambient Temp. 40 Degrees C
RPM Range 1,001-1,100
Motor Mounting Position All Angle
Motor Shaft Rotation CW/CCW
Motor Service Factor 1
Frame 48Z
Motor Shaft Design Double-Flat
Mounting Stud Location Shaft End
Voltage 115/230V AC
Motor Sub Application Direct Drive Fan
Application Blowers, Fans and Air Circulators
Includes Resilient Base
No. of Speeds 1
Stud Quantity 4
Mounting Holes (4) #10-32
Usable @ 208V No
Number of Shafts 1
Weight 23 lb
Motor Frame Material Steel
Usable @ 200V No
Mounting Cradle Base
Number of Speeds 1

Description

Direct Drive Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,100, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.5/3.3 A, 48Z Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
