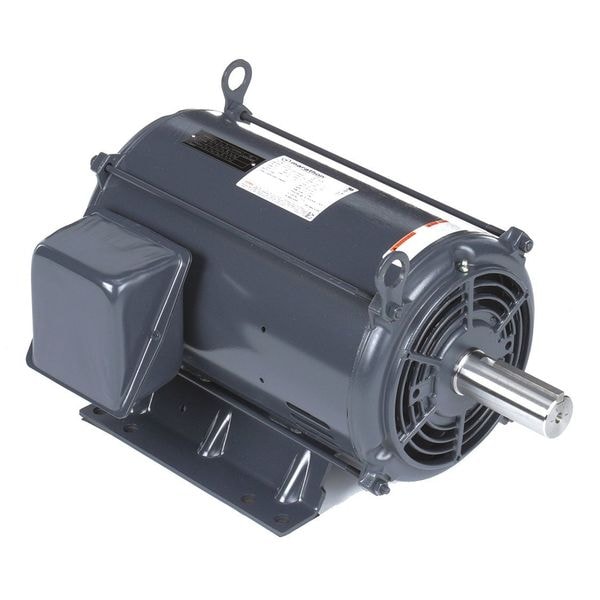

3-Phase Belt Drive Motor, 3 1/3, 7 1/2 HP, 254T Frame, 460V AC Voltage, 1,755 Nameplate RPM

  • Mfr # 254TTDX7208
  • Zoro # G9827921
product price:
$
1,491.78
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3 1/3, 7 1/2
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254TTDX7208
Zoro #
G9827921
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 5/8 in
Shaft Length
4 3/16 in
Overall Length
20 9/16 in
Length Less Shaft
16 3/8 in
Shaft Diameter
1 5/8 in
Body Diameter
9.5 in
Frame Size
254T

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3 1/3, 7 1/2
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,755
Voltage
460V AC
Frame
254T
Motor Mounting Type
Rigid Base
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Shaft Rotation
CW/CCW
Standards
CSA (LR2025), UL (E49747)
Motor Frame Material
Steel
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Max. Ambient Temp.
104 Degrees F
Frame Material
Steel
Duty
Continuous
Nominal Efficiency
84 %
Hz
60 Hz
Ins. Class
B
Full Load Amps
10,5.6 A
Motor Shaft Design
Keyed
Usable @ 208V
No
Usable @ 200V
No
Duty Cycle
Continuous
Weight
154 lb
Finish
Blue Epoxy
Insulation Class
B
Product Type
Fan and Blower Motor
Shaft Design
Keyed
Application
Fan/Blower
Frequency
60 Hz
Drive Type
Belt Drive
Number of Speeds
1
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
10.0 A

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 460V AC, 10.0 A Full Load Amps, 254T Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
