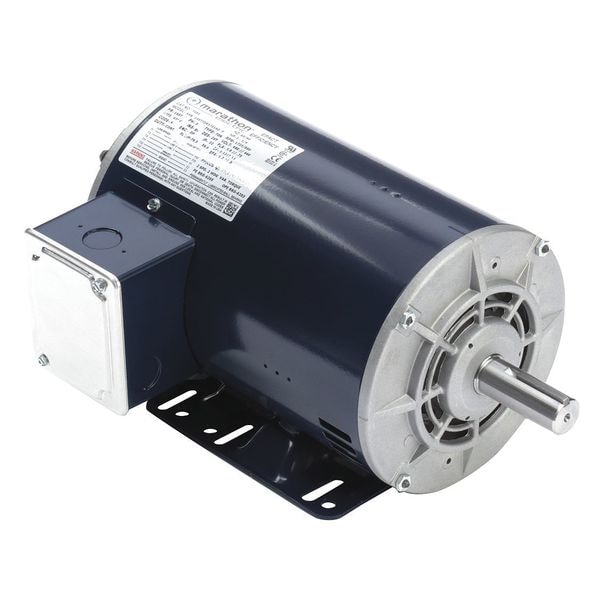

3-Phase Belt Drive Motor, 1, 1/4 HP, 145T Frame, 460V AC Voltage, 1,725/860 Nameplate RPM

  • Mfr # 145TTDR5701
  • Zoro # G5566967
product price:
$
941.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
1, 1/4
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
145TTDR5701
Zoro #
G5566967
UPC #
-
Country of Origin
United States
Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
1, 1/4
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,725/860
Voltage
460V AC
Frame
145T
Motor Mounting Type
Rigid Base
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Nominal Efficiency
79.5 %
Duty
Continuous
Motor Shaft Design
Keyed
Max. Ambient Temp.
104 Degrees F
Standards
CSA (LR2025), UL (E49747)
Hz
60 Hz
Motor Mounting Position
Horizontal
Ins. Class
B
Motor Frame Material
Steel
Motor Bearings
Ball
Full Load Amps
1.5,0.75 A
Motor Shaft Rotation
CW/CCW
Frame Material
Steel
Full Load Amps @ 50Hz
5.8-5.4/2.7 A
Usable @ 208V
No
Usable @ 200V
No
Weight
42 lb
Duty Cycle
Continuous
Finish
Blue Epoxy
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 50 Hz
5.8-5.4/2.7 A
Full Load Current @ 60 Hz
0.75 A, 1.5A
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Application
Fan/Blower
Insulation Class
B
Frequency
60 Hz
Product Type
Fan and Blower Motor
Bearing Type
Ball
Drive Type
Belt Drive

Dimensions

Shaft Dia.
7/8 in
Overall Length
13 in
Shaft Length
2 1/4 in
Body Dia.
6 1/2 in
Length Less Shaft
10 11/16 in
Shaft Diameter
7/8 in
Frame Size
145T
Body Diameter
6.5 in

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 hp, 1/4 hp HP, Nameplate RPM 1,725/860 RPM, No. of Speeds 2, Voltage 460V AC, 0.75 A, 1.5A Full Load Amps, 145T Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
