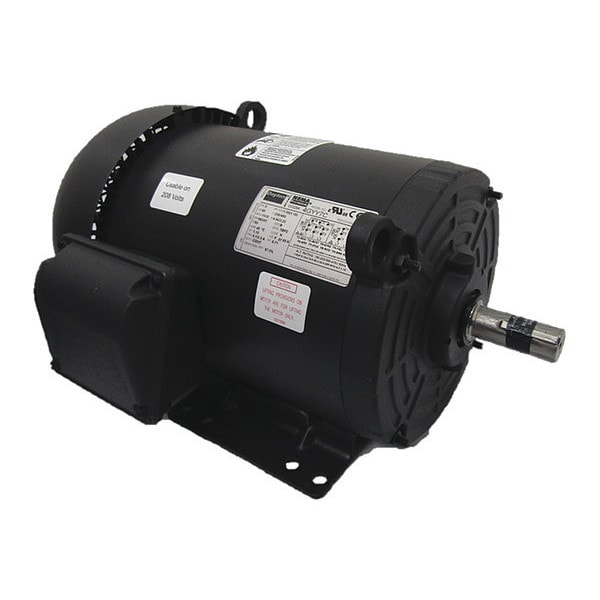

Dayton Three-Phase General Purpose Motor, 1 1/2 HP, 182/4T Frame, 230/460V AC Voltage, 1170 Nameplate RPM 4GYY7 - main
Shop DAYTON

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4T Frame, 230/460V AC Voltage, 1170 Nameplate RPM

  • Mfr # 4GYY7

  • Zoro # G0961195

product price:  $664.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
1170
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.8/2.9 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4GYY7
Zoro #
G0961195
UPC #
190735324714
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 13/16 in
Overall Length
16 9/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr
Frame Size
182-4T
Body Diameter
8.11 in
Shaft Diameter
1 1/8 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
1170
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.8/2.9 A
Frame
182/4T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
87.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
3,16
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Duty Cycle
Continuous
Product Type
General Purpose Motor
Efficiency Rating
NEMA Premium Efficiency
Bearing Lubrication Type
Permanently Lubricated
Constant Torque Rating
4:1
Manufacturers Warranty
3 yr
Bearing Type
Ball
Shaft Design
Keyed
Bearing Protection Type
Shaft Slingers
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Weight
31 1/8 kg
Conduit Box Location
Exterior
Full Load Current @ 60 Hz
4.44/2.22 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
B
Variable Torque Rating
10:1
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Usable @ 208V
Not Usable at 208V
Includes
Shaft Key
Inverter Rating
Inverter Rated
Application
General Purpose

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1170, Frame 182/4T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.8/2.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
