Shop LEESON

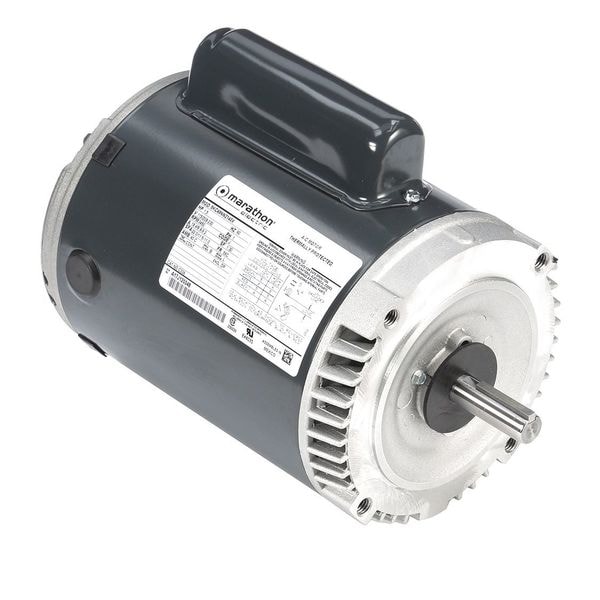

Mtr, Cap St, 1.5 HP, 3450,115/208-230V, 56C

  • Mfr # 5KC49NN2140X
  • Zoro # G2208762
product price:
$
375.99
/ea
Free Shipping & Returns

Key Features

Shaft Material
Carbon Steel
Body Dia.
6.4 in
Duty
Continuous
HP
1 1/2
Motor Shaft Design
Keyed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KC49NN2140X
Zoro #
G2208762
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
6.4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
11 3/8 in
Length Less Shaft
9 1/2 in
Bolt Circle Dia.
2 15/16 in
Shaft Dia. (In.)
5/8
Shaft Diameter
5/8 in
Frame Size
56C
Bolt Circle Diameter
2 15/16 in
Body Diameter
6.4 in
Wire Rope Length
11 3/8 in
Length
11 3/8 in

Details

Shaft Material
Carbon Steel
Duty
Continuous
HP
1 1/2
Motor Shaft Design
Keyed
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Face
Motor Service Factor
1.3
Nominal Efficiency
72 %
Motor Application
Pump
Motor Sub Application
Jet Pump
Max. Ambient Temp.
40 Degrees C
Voltage
115V AC, 208V AC to 230V AC
Phase
Single
Ins. Class
B
Standards
CSA, UL Recognized
Motor Design
Capacitor-Start
Includes
Shaft Slinger
RPM Range
3,001-3,600
Full Load Amps
18.4/9.8-9.2 A
Motor Thermal Protection
Auto
Frame
56C
Nameplate RPM
3,450
Motor Bearings
Ball
Item
Jet Pump Motor
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Mounting Position
All Angle
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
NEMA Design
L
No. of Speeds
1
Motor Frame Material
Steel
Weight
27 lb
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Shaft Type
Keyed
Application
Pump
Full Load Current @ 60 Hz
18.4, 9.8-9.2 A
Sub Application
Jet Pump
Number of Wires
9
Insulation Class
B
Bearing Type
Ball
Frame Material
Steel
NEMA Design Class
L
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.3
Mounting Position
All Angle
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Pump Motor
Shaft Design
Keyed
Frequency
60 Hz

Description

Jet Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 2 15/16 in, Duty Cycle Continuous, Frame 56C, Hz 60 Hz, Full Load Amps 18.4/9.8-9.2, HP 1 1/2, Includes Shaft Slinger, Ins. Class B, Length Less Shaft 9 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
