Shop DAYTON

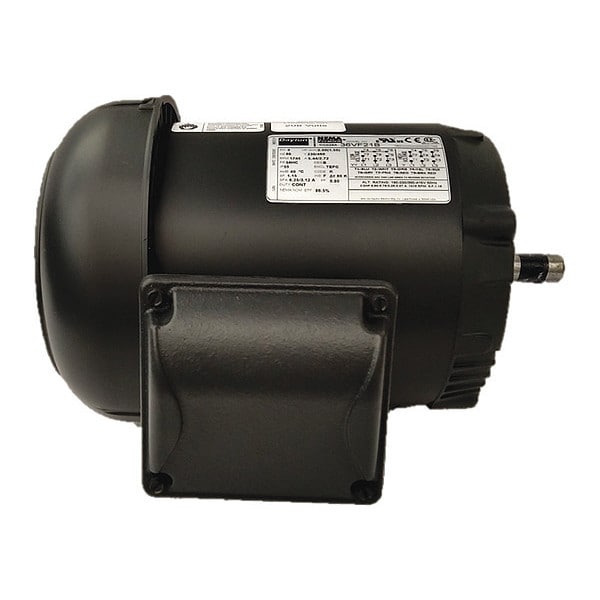

Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 1745 Nameplate RPM

  • Mfr # 36VF21

  • Zoro # G0692240

product price:  $408.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1745
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
5.7/2.8 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF21
Zoro #
G0692240
UPC #
190735275535
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 5/8 in
Overall Length
13 1/2 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Frame Size
56HC
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.45 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1745
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
5.7/2.8 A
Frame
56HC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, UL
CC Number
CC029A
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
2, 15, 56
Inverter Rated
Yes
Capacitor Required
No
Duty Cycle
Continuous
Constant Torque Rating
4:1
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Bearing Protection Type
Shaft Slingers
Ambient Temperature - Maximum
40 Degrees C
Includes
Shaft Key
Weight
19 3/4 kg
Bearing Lubrication Type
Permanently Lubricated
Conduit Box Location
Exterior
Variable Torque Rating
10:1
Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
Mounting Position
Horizontal
Bearing Type
Ball
Insulation Class
F
NEMA Design Class
B
Full Load Current @ 60 Hz
5.44/2.72 A
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Application
General Purpose
Number of Speeds
1
Inverter Rating
Inverter Rated
Usable @ 200V
Not Usable at 200V
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1745, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.7/2.8 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL
