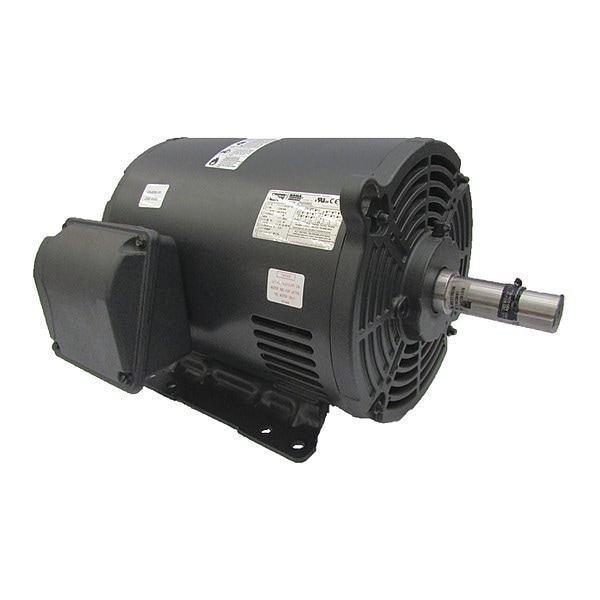

Three-Phase General Purpose Motor, 10 HP, 254/6U Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 2N986
  • Zoro # G3398123
product price:
$
1,441.99
/ea
Additional $70.00 delivery surcharge applies per item.
See details

Key Features

Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
25.7/12.9 A
Frame
254/6U
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N986
Zoro #
G3398123
UPC #
190735228340
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 1/16 in
Overall Length
21 13/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
3 yr
Wire Rope Length
21 13/16 in
Shaft Diameter
1 3/8 in
Body Diameter
11.52 in
Frame Size
254-6U
Length
21 13/16 in

Details

Item
General Purpose Motor
HP
10
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
25.7/12.9 A
Frame
254/6U
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CE, CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Footnotes
2,10,15
Inverter Rated
Yes
NEMA Design
B
Duty Cycle
Continuous
Application
General Purpose
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Full Load Current @ 60 Hz
24.7/12.4 A
Usable @ 200V
Not Usable at 200V
Inverter Rating
Inverter Rated
Bearing Lubrication Type
Regreasable
Mounting Position
Horizontal
Bearing Type
Ball
Number of Speeds
1
NEMA Design Class
B
Weight
79 7/8 kg
Variable Torque Rating
10:1
Shaft Design
Keyed
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
3 yr
Bearing Protection Type
No Protection
Product Type
General Purpose Motor
Efficiency Rating
NEMA Premium Efficiency
Usable @ 208V
Not Usable at 208V
Includes
Shaft Key
Ambient Temperature - Maximum
40 Degrees C
Conduit Box Location
Exterior

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 1,770, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.7/12.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Shaft Key
