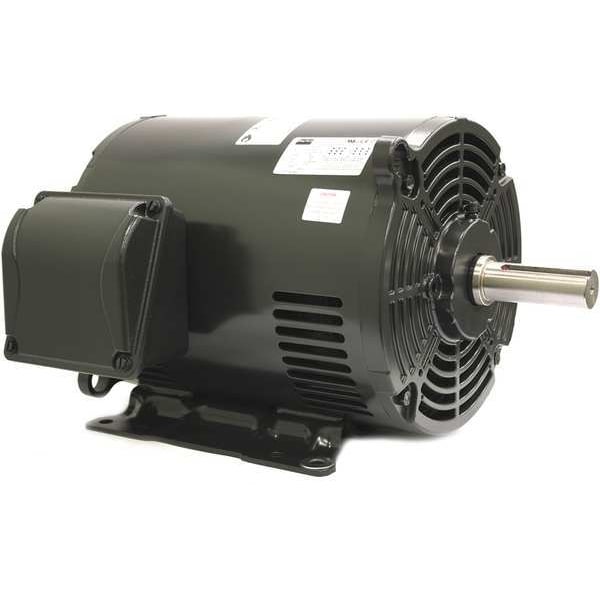

Three-Phase General Purpose Motor, 7 1/2 HP, 254/6U Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 2N985
  • Zoro # G0405492
product price:
$
1,381.99
/ea
Additional $90.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.8/9.4 A
Frame
254/6U
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N985
Zoro #
G0405492
UPC #
190735228333
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 1/16 in
Overall Length
21 13/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
3 yr
Body Diameter
11.52 in
Shaft Diameter
1 3/8 in
Wire Rope Length
21 13/16 in
Frame Size
254-6U
Length
21 13/16 in

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.8/9.4 A
Frame
254/6U
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
91 %
Standards
CE, CSA, UL
CC Number
CC029A
Footnotes
2,10,15
Inverter Rated
Yes
Motor Thermal Protection
None
NEMA Design
B
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Variable Torque Rating
10:1
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Number of Speeds
1
Full Load Current @ 60 Hz
18.5/9.3 A
Insulation Class
F
Bearing Lubrication Type
Regreasable
Inverter Rating
Inverter Rated
Bearing Type
Ball
Product Type
General Purpose Motor
Usable @ 200V
Not Usable at 200V
Manufacturers Warranty
3 yr
NEMA Design Class
B
Mounting Position
Horizontal
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Application
General Purpose
Conduit Box Location
Exterior
Bearing Protection Type
No Protection
Weight
77 21/32 kg
Usable @ 208V
Not Usable at 208V
Includes
Shaft Key

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.8/9.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Shaft Key
